Metal Hardness Test with impact Device D - ICLA-THL280
DISCONTINUED
Product code: ICLA-THL280
Unfortunately, the ICLA-THL280 has been discontinued, check out our other Material Hardness Testers for more options.
Metal Hardness Test with impact Device D
Unfortunately, the ICLA-THL280 has been discontinued, check out our other
Material Hardness Testers for more options.

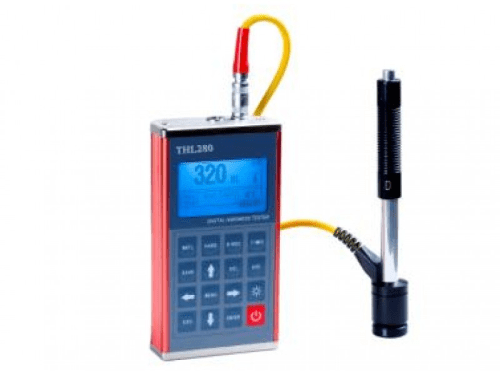

LA THL280 Metal Hardness Tester with Impact Device D
Features
LCD display with back-light.
Supplied with user interface software and USB cable.
Memory of 600 groups of data.
Lower limit setting and alarm.
Hardness scale: HLD, HB, HRB, HRC, HRA, HV, HS
Memory: 32 Readings/Batch, Max 600 batches
Measuring range: HLD?170?960?
Accuracy: 6HLD up to 760 HLD 30 HLD > 760 HLD
Max. Work piece Hardness: 996HV (For Impact Devices D,DC, DL, D+15 &C), 646HB (For Impact Device G)
Min. Radius of Work Piece: (convex/concave) Rmin = 50mm (with special support ring Rmin= 10mm)
Min. Work piece weight: 2 to 5kg on stable support, 0.05 to 2kg with compact coupling
Min. Work piece thickness: 5mm (Impact Devices D,DC,DL & D+15), 1mm (Impact Device C)
10mm (Impact Device G),
Min. thickness of hardened surface: 0.8mm
Power: Rechargable Lithium lon battery 3.7V/600mA
Continuous Working Time: Approximately 100 hours
Operating temperature: 0 to 40C
Relative humidity: 90%
Unit Dimensions 125 x 67 x 31mm
Unit Weight: 300g
Optional:
Impact Devices DC, D+15, G, C & DL
Mini Printer
LCD display with back-light.
Supplied with user interface software and USB cable.
Memory of 600 groups of data.
Lower limit setting and alarm.
Specifications
Hardness scale: HLD, HB, HRB, HRC, HRA, HV, HS
Memory: 32 Readings/Batch, Max 600 batches
Measuring range: HLD?170?960?
Accuracy: 6HLD up to 760 HLD 30 HLD > 760 HLD
Max. Work piece Hardness: 996HV (For Impact Devices D,DC, DL, D+15 &C), 646HB (For Impact Device G)
Min. Radius of Work Piece: (convex/concave) Rmin = 50mm (with special support ring Rmin= 10mm)
Min. Work piece weight: 2 to 5kg on stable support, 0.05 to 2kg with compact coupling
Min. Work piece thickness: 5mm (Impact Devices D,DC,DL & D+15), 1mm (Impact Device C)
10mm (Impact Device G),
Min. thickness of hardened surface: 0.8mm
Power: Rechargable Lithium lon battery 3.7V/600mA
Continuous Working Time: Approximately 100 hours
Operating temperature: 0 to 40C
Relative humidity: 90%
Unit Dimensions 125 x 67 x 31mm
Unit Weight: 300g
Optional:
Impact Devices DC, D+15, G, C & DL
Mini Printer
