Met Station with Wind speed/Direction, Temp/RH and Pressure

ORDER ME IN
Product code: IC-MS-120-100

Order Me In, Once ordered this item will likely dispatch before the 12th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The Dyacon MS-120-100 is a wired, preconfigured weather station suitable for fixed installations requiring a Modbus interface.

Read more

$4,131.00 AUD + GST
 $4,544.10 AUD Inc. GST

The Dyacon MS-120 is a wire-connected weather (meteorological) station. MS-120 can serve as a data logger or be wired to programmable logic controllers (PLCs) through the Modbus slave port. It can also be connected to a personal computer with a simple Modbus-to-USB converter. (More about Modbus.) A USB device port provides an interface for configuration and data log retrieval. The MS-120 also comes preconfigured for easy setup; no programming is required. The weather station can be powered with 12 VDC to 24 VDC.

Options such as a rain gauge can be added at any time to meet the user's changing needs. Adding the Tripod-1 (optional add-on) to a Dyacon weather station will provide a simple and portable instrumentation platform.

Tripod not included

Features:

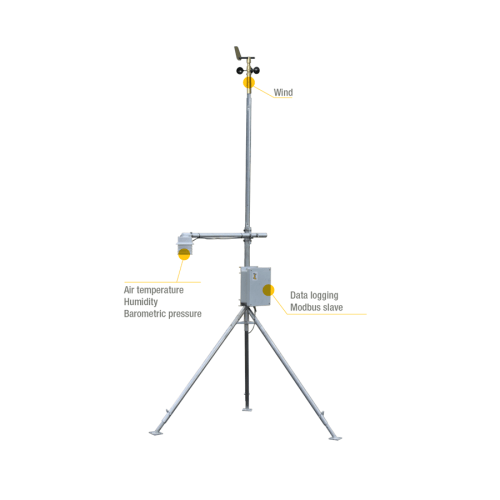

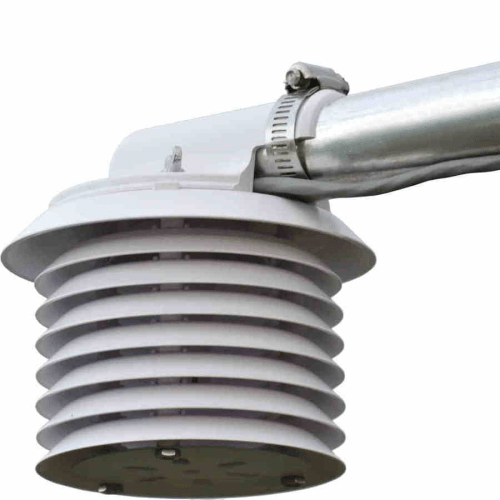

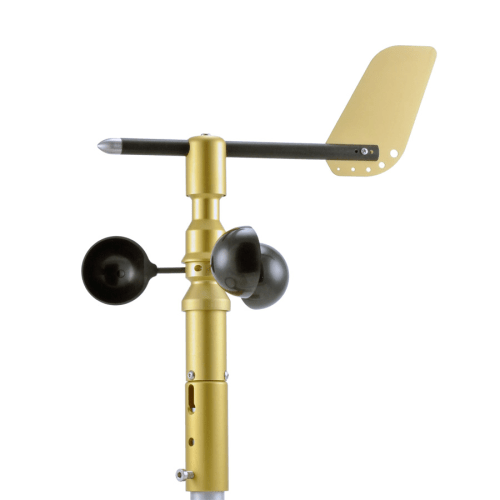

- Shipped with the control module, wind sensor, air sensor, and mounting hardware suitable for mounting onto a pole or flat surface.

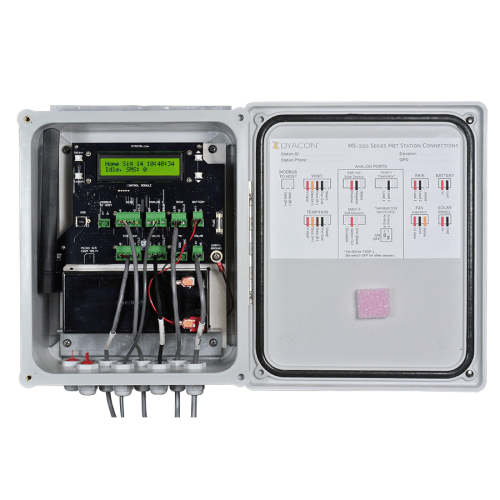

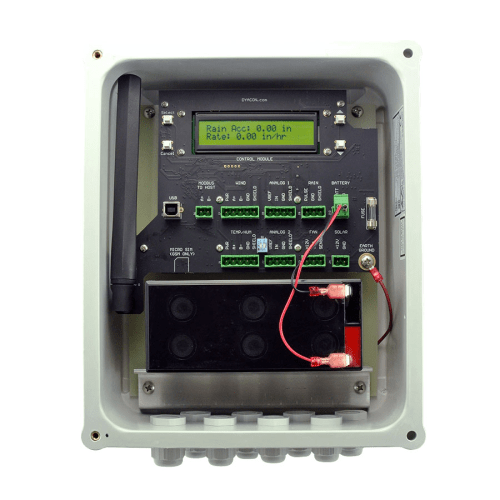

- The control module is equipped with both a USB device and Modbus slave ports for connecting to data hosting equipment, such as PCs or programmable logic controllers (PLCs).
- The MS-120 is designed to be easily installed and maintained by the user. All sensors shipped with the unit are preconfigured and tested prior to shipment. Full instructions are available to enable setup to be done by the user without technical support.
- Expandability and flexibility: The MS-120 uses the same control module hardware (data logger) as other Dyacon MS-1xx weather stations. As such, optional add-ons such as a rain gauge, solar sensor, soil moisture probe, and soil temperature probe are available at any time. The weather station can be converted to a solar-powered station with the addition of a solar module and battery, which can be installed in the field.
- Brackets and hardware are included for mounting the components onto 3/4 inch to 2 inch pipe or a flat surface.
Other benefits:
- Easy and sophisticated operation
- Wind speed and direction
- Real-time gust detection
- 2 min and 10 min wind averages
- Air temperature
- Relative humidity
- Barometric pressure
- Pressure trend indication
- Weather reports via text message
- WeatherUnderground.com upload
- Easy configuration with LCD or USB program
- Modbus slave
- Low-power operation
- Data logger
- Email or ftp of data log
- Lightning detection

Dyacon Live:

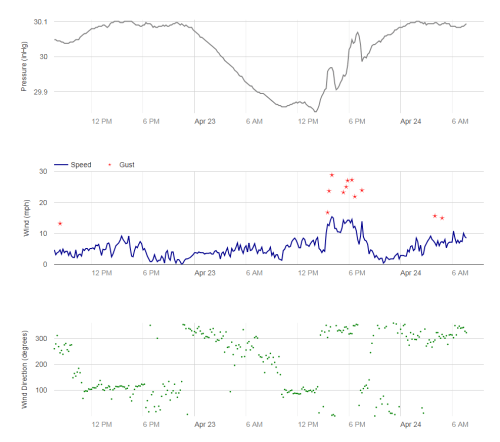

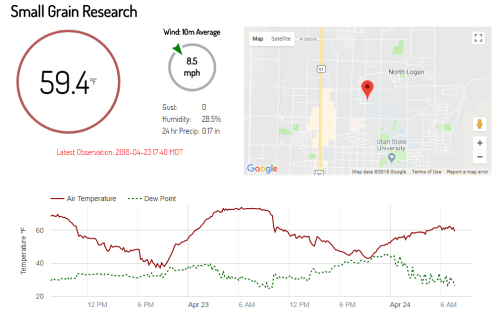

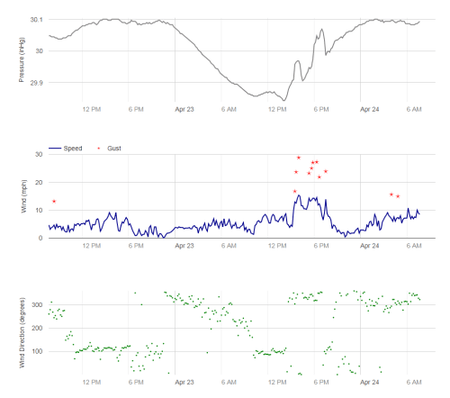

Dyacon now offers a dedicated weather station webportal for real-time weather station data. Each weather station equipped with a Dyacon cell phone plan includes this feature.
DyaconLive offers features not found on other personal weather station portals:
- Displays all sensor data.
- Charts solar power and battery status.
- Shows weather station parameters, including firmware version, radio signal strength, and more.
- Admin user with user access controls.
