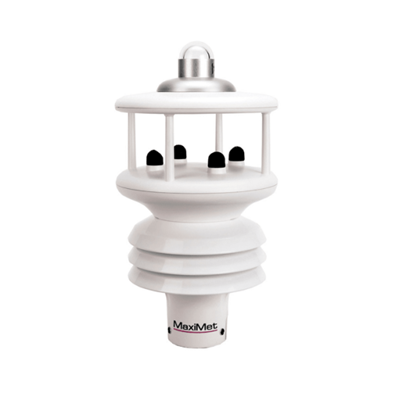

MaxiMet GMX501 Advanced Automatic Weather Station System

The GMX501 is engineered to ensure high measurement accuracy, low maintenance, and reliable continuous status reporting. This is a high-performance weather station is simple to install, use and maintain and provides 6 measured parameters. The GMX501 can also derive multiple additional parameters based on combining these measured parameters, such as gust, average wind speed and dew point providing more value as no additional sensors are needed for these additional parameters.

The GMX501 is engineered to ensure high measurement accuracy, low maintenance, and reliable continuous status reporting. It includes a range of sensor configurations allowing customers to select the model most appropriate to their needs.
Data output is downloaded as a single string which is available on a range of communications protocols SDI-12 is default, but can be switched by user to MODBUS, RS232, RS422, RS485 or NMEA (switch requires USB configuration cable).

Features:

- High-quality compact integrated weather station
- No moving parts
- Accurate and rugged solid state sensors
- Measures wind speed and direction, temperature, humidity, pressure and solar radiation
- Multiple additional derived parameters
- Built in electronic 2-axis compass
- SDI-12 enabled

Specifications

Meter:

- Input connections: 12 differential (or 24 single-ended) analog inputs configurable as: Voltage, Resistance (12 3-wire or 24 2-wire), Bridge (12), Potentiometer (12) / 4 digital inputs as: Counters, (2 fast + 2 slow), Frequency, Digital state / 1 Delta-T WET sensor channel / Unlimited virtual channels
- Serial input channel: 62 SDI-12 sensors or a single WET Sensor
- Control outputs: 2 relay outputs expandable to 6 (1 A)
- Readings stored: 2.5 Million
- Recording rate: 1 second to 24 hours
- Configuration: DeltaLINK
- Communication options: USB, RS232, ethernet or modem
- Sensor excitation: Calibrated 3V reference, +5 V and +12 V regulated, or 5 to 10.5 V (battery or external power), user selectable
- Power: 6 AA alkaline batteries or external power 10-15 V DC
- Battery life (dependent on usage): good for about 310K readings, lasting 530 days
- Enclosure rating: IP65
- Temperature range: -20 to +60 C
- Display: N/A
- Size: 225 x 185 x 75 mm
- Typical applications: Demanding research projects, Environmental monitoring, Varied control applications

Sensors:

- Wind speed AN-WD2 (combined wind sensor): 0 to 75 m.s-1 +/- 0.1 m.s-1 for up to 10 m.s-1; +/- 1.1% of reading for measurements over 10 m.s-1
- Wind direction AN-WD2 (combined wind sensor): 0 to 360 degrees +/- 4 degrees
- Rainfall RG2+BP: 0.2 mm per tip, up to 360 mm.hr-1
- Humidity RHT2nl (combined air temp sensor): 5 to 95% RH +/- 2% RH
- Air temperature RHT2nl (combined RH sensor): 0 to 70 C +/- 0.1 C
- Solar radiation ES2: At 20 C (optimal conditions) +/- 5%
- Soil temperature ST1: -10 to +65 C +/- 0.2 C
