MAVOSPEC Lite

ORDER ME IN
Product code: Mavospec-Lite

Backorder Now, once ordered your item will dispatch before the 15th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

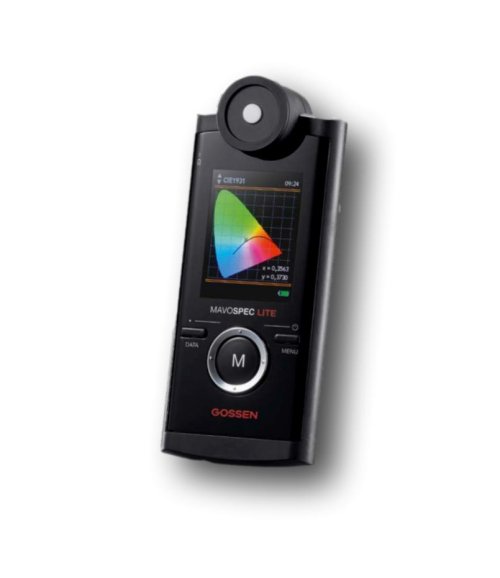

The MAVOSPEC LITE is a miniaturized spectrometer for assessing the light quality of light fixtures and selecting and matching various light sources for lightning design.

-Measures relevant parameters for light such as illuminance, correlated color temperature, color rendering index in accordance with CIE 13.3, color coordinates in accordance with various CIE standards and spectral power distribution.

-Can be used to assess lightning quality at a touch of a button, such as when assessing lighting quality is stipulated in the standards for workstations.

Read more

$2,779.60 AUD + GST
 $3,057.56 AUD Inc. GST
Regardless of the lighting situation, from private residential or professional, right on up to industrial, compliance with specified values and standards, as well as consideration of quantitative and qualitative requirements, are decisive in terms of the achieved lighting effect. The Mavospec Lite assesses your light and delivers information covering all relevant factors; certified and documented for more safety from planning to commissioning.
Features:
- Assigns precise values to your light with automatic results documentation - Stores the measured values on the integrated micro SD card at the touch of a button or automatically, and is recognized as a removable data medium when connected to a computer. The measurement files saved in CSV format can be easily opened, copied, moved or deleted.
- Flexible reporting: The included Excel template offers various measurement reports, the elements of which can be adapted as required and combined to create new customer-specific templates.
- Support for lightning design: From selecting and matching various light sources all the way through to checking the results and approving the installation, the Mavospec Lite provides you with all important values.
- Detects electrical installation problems: By proactively assessing the light quality of delivered lighting fixtures, you can avoid subsequent complaints in advance and ensure smooth approval procedures by quickly checking the lighting installation at the touch of a button.

Specifications

- Sensor: CMOS image sensor, 256 pixels
- Diffusor: light-entry surface 7 mm diameter
- Distance diffuser to surface to be measured: 25 mm
- Error limit - cos ike rating (f2')): less than or equal to 3.00 %
- Spectral range: 380 - 780 nm (VIS)
- Full width at half maximum (FWHM): less than or equal to 15 nm (typically 12 nm)
- Physical resolution: around 1.72 nm
- A/D converter: 16 bit
- Wavelength reproducibility: +/- 0.5 nm
- Integration time: automatic, manual, 10 ms 3,000 ms
- Signal-to-noise ratio: 1,000:1
- Spurious light: -25 dB
- Dark current compensation: automatic via temperature sensor
- Measurement uncertainty illuminance: +/- 3 %
- Reproducibility chromaticity: +/- 0.0005
- Measurement uncertainty CCT: +/- 2 %
- Measurement uncertainty CRI: +/- 1.5 %
- Display: 2.1" color TFT 320 x 240
- Controls: 3 keys, ring controller
- Interface: USB 2.0
- Interface protocol: open
- Data storage: 4 GB micro SD /500,000 measurements
- Memory mode: Manual, auto
- Data format: CSV
