Gossen | See more Light Meters

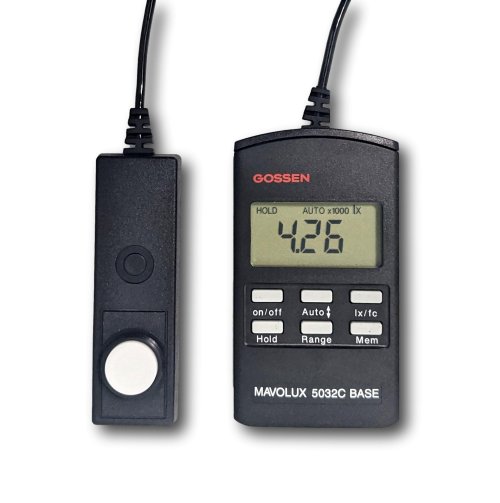

MAVOLUX lluminance (Lux) Meter 5032 C Base - IC-M502B

DISCONTINUED
Product code: IC-M502B

Unfortunately, the M502B has been discontinued, please call 130 737 871 to discuss alternatives.

lluminance meter including battery, operating instructions and calibration protocol. 0.1 lx to 199900 lx/0.001 fc to19990 fc

Read more

Unfortunately, the M502B has been discontinued, please call 130 737 871 to discuss alternatives.
Measuring functions:
- Illuminance [Lux]: 0.1 lx199900 lx/0.001 fc19990 fc
- Measuring ranges: 4
- Measuring range selection: Automatic / manual
- Measuring rate: 2 per second
- Measuring method: Distance measurement
- Measuring sensor: Silicon photodiode with V(?) filter

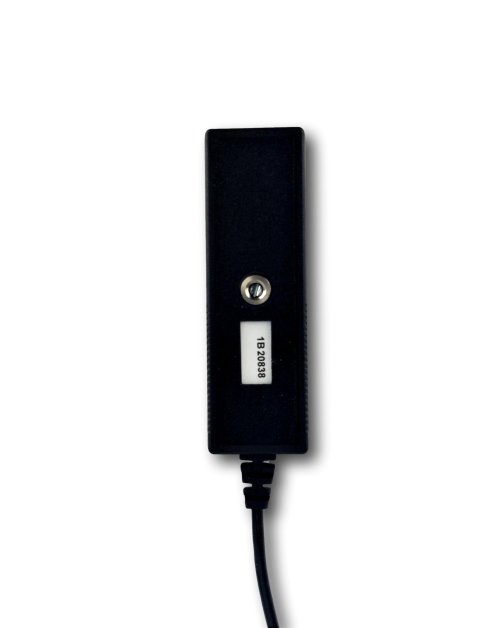

- Probe with tripod thread
- Measurement cable: 1.5 m, firmly connected
- Measured value memory: 100 measured values
- Error limit - V(?) adapted (f1'), typical: < 7.5 %
- Error limit - overall error, typical: ? 15 %
- Accuracy: +- 3 % of reading +- 1 digit
Power supply:
- Battery: 2x 1,5V Mignon, Typ AA
- Automatic battery control
- Automatic shutdown: 4 min. / continuous operation
- Battery service life: Approx. 45 hours with alkaline manganese battery
- Power supply: USB
Operation and other specifications:
- Display: 3 1/2 digit LCD
- Operating elements: 6 keys
- Operating temperature: 0 to 50
- Dimensions (meter): 65 mm x 120 mm x 19 mm
- Dimensions (probe): 31 mm x 105 mm x 30 mm
- Weight: 200 g without battery

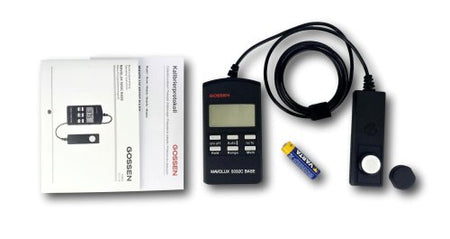

- Delivery contents: Aluminum case, GLUX 2 software, USB cable, battery, operating instructions
