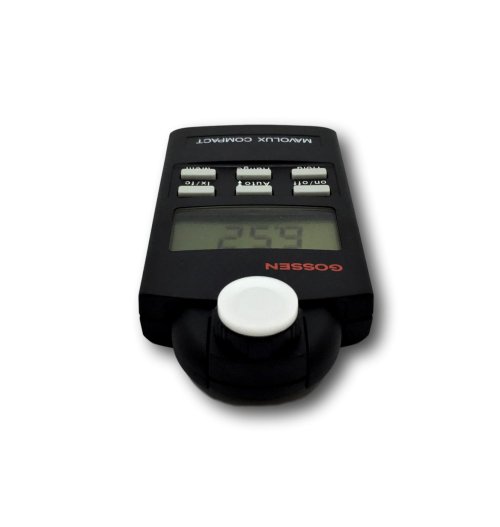

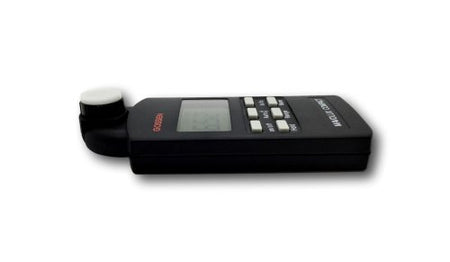

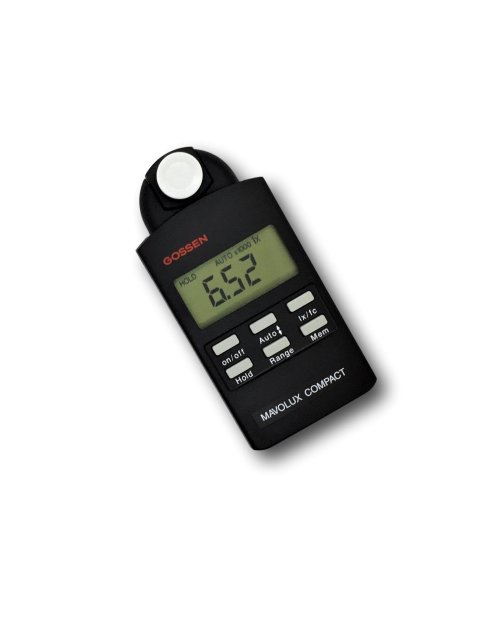

MAVOLUX Compact Light (Lux) Meter 5032-7 - IC-M502C
Unfortunately, the M502C has been discontinued, please call 130 737 871 to discuss alternatives.
Unfortunately, the M502C has been discontinued, please call 130 737 871 to discuss alternatives.
The MAVOLUX Compact is a Class C instrument in accordance with DIN 5032-7 and EN 13032-1 appendix B. It includes high-quality V(x) matching and cosine correction, and it's laid out for reliable measurement of daylight and all sources of artificial light including LED with a large measuring range and accuracy.
Features:
- Maximum reliability: Classified measurement of illuminance in lx or fc in accordance with class C per DIN 5032-7, appendix B of EN 13032-1 and CIE S 023.
- Precise Measured Values: Accuracy amounts to 3% up to 1 digit of the display value.
- Broad measuring range: High initial sensitivity and a resolution of 0.1 lx or 0.01 fc, right on up to large illuminance values of 199,900 lx or 19,990 fc.
- V(x) matching: The spectral sensitivity of the silicon photodiode is color corrected and corresponds to the spectral brightness sensitivity of the human eye V.
- Cosine correction: The luminosity of a flat measuring surface is proportional to the cosine of the incident angle of light. This relationship is taken into consideration by the receiver during evaluation.
- Non-volatile memory: 100 measured values can be saved and retrieved.
- Swiveling sensor: permits adjustment to individual working conditions and the display can be read in the dark thanks to illumination in the HOLD function
- Convenient everyday use: Simple one-hand operation, easy to read display, compact design.
Specifications
- Accuracy class: Class C, DIN 5032-7, EN 13032-1 attachment B, CIE S 023
- Light sensor: Silicon fotodiode with V -filter
- Functions: Autorange, Range Hold, Manual Range, displays Lux (lx) / Footcandle (fc), Hold function and Mem function for 100 measuring values
- Measuring range: 0.1 lx to 199 900 lx over 4 ranges
- Measurement rate: 2 measurements per second
- Battery: 1,5 V size AA, IEC LR 6, alkaline-manganese cell
- Battery service life: approx. 45 hours
- Dimensions: 65 x 140 x 25 mm

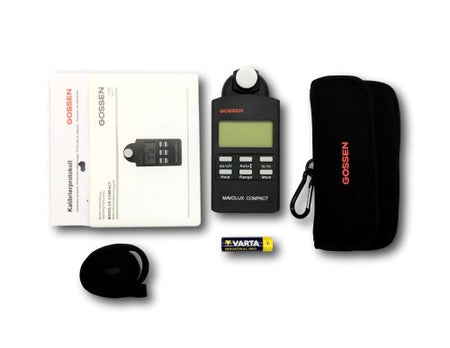

- Standard Equipment: Battery, operating instructions, case, neck strap
Measuring functions:
- Illuminance: 0.1 lx 199 900 lx/0.01 fc 19 990 fc
- Measuring ranges: 4
- Measuring range selection: Automatic / Manual
- Measuring rate: 2/s
- Measuring sensor: Silicon photodiode with V filter
- Measuring head: Swivel-type
- Measured value memory: 100 measured values
- Error limit - overall error typical: < 15 %
- Accuracy: 3 % of reading + 1 digit
