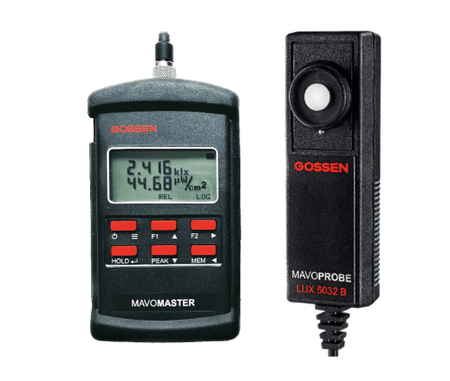

MAVOLUX 5032 B Mavomaster Kit - IC-M535G
ORDER ME IN
Order Me In, Once ordered this item will likely dispatch before the 10th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
The innovative Mavomaster and Mavoprobes light metering system provides you with absolute flexibility and reliability for all of your applications. Each Mavoprobe has their own specifications and functions for different measurement needs and all of them can immediately be used with the Mavomaster. There are Mavoprobes in accordance with DIN 5032-7 class B or C, luminance in accordance with DIN 5032-7 class B or with a UV-A/LUX combination probe for non-destructive testing.
- The Mavomaster provides both real time measurement and evaluation of lighting conditions. Evaluation includes data logging, relative measurement, raster measurement for the assessment of workplace lighting, and much more.
- Each Mavoprobe is configured beforehand and can be connected immediately to any Mavomaster. This kit includes the Mavoprobe LUX 5032 B for DIN 5032-7 class B measurements.
- Kit includes the Mavomaster, the Mavoprobe LUX 5032 B, rubber holster, aluminum carrying case, USB cable, battery, operating instructions, and final test certificate.
Regular price
$2,239.30 AUD
+ GST
$2,463.23 AUD Inc. GST
$2,463.23 AUD Inc. GST
Newly developed from the ground up, Mavomaster and Mavorprobes elevate light metering and certification to an entirely new level: a universal, basic Mavomaster meter can now be easily and flexibly combined with a diverse range of Mavoprobes (measuring probes).
For example with classified measuring probes for illuminance in accordance with DIN 5032-7 class B or C, luminance in accordance with DIN 5032-7 class B or with a UV-A/LUX combination probe for non-destructive testing for efficient light testing and certification in a great variety of applications.
The Mavoprobe LUX 5032 class B is in accordance with DIN 5032-7, DIN EN 13032-1 appendix B and ISO/CIE 19476. It is equipped with V() matching as well as cosine correction, and reliably measure the illuminance of daylight and all artificial sources of light. Even in the case of very bright sunlight or illumination from headlights, no accessories are required.
Features:
- Universal use: Each probe can be used with a Mavomaster as a stand-alone measuring instrument. The probes can also be used cost-effectively in single or multi-channel measuring systems with an optional USB adapter.
- Cost-effective system setup: Through the use of commercially available USB accessories and open terminal assignments.
- Individualized system integration: For device control and data communication by means of open interface protocols.
- Convenient continuous operation: Thanks to power supply for the individual components via USB interface, you can operate the Mavomaster and Mavoprobe for prolonged periods.
- Sustainable system concept: Firmware updates are given regularly to ensure your device is in working order.
Mavomaster
Specifications
- Sampling rate: 2/s
- Probe connector cable: Probe connection, Binder series 711 plug, 5-pin
- Compliance with the Standards: DIN 5032-7 / DIN EN 13032-1 appendix B / ISO CIE 19476
- Display: FSTN graphic display, 12864, monochrome, 50 mm x 25 mm
- Background illumination: Selectable mode and adjustable brightness
- Controls: 6 keys, fluorescent lettering
- Measured value memory: 4 GB
- Interface: USB 2.0, micro-B socket
- Software: EXCEL TEMPLATES
- Batteries: 1,5V mignon, type AA
- Automatic battery monitoring: Yes
- Automatic shutdown: Off, 10 s, 30 s, 1 min, 2 min, 5 min
- Battery service life: Up to 16 h continous operation with alkaline manganese battery
- Power supply via USB: Yes
- Operating temperature: -10 C to +50C
- Dimensions: 65 mm x 120 mm x 19 mm
- Weight: 100 g including battery
- Scope of delivery
Mavoprobe 5032 B
Specifications
- Illuminance: 0,001 lx 199 990 lx / 0,001 fc 19 999 fc
- Luminance: 0.01 cd/m2 1 999 900 cd/m2 / 0.001 fL 199 990 fL with optional luminance attachment, not classified
- Sampling rate: 2/s
- Measuring sensor: Silicon photodiode with V() filter
- Probe connector cable: 1.5 m, plug-in, Binder series 711 plug, 5-pin
- Accuracy: +/- 2.5 % rdg +/- 1 digit
- Characteristic value V() matching (f1), typical: less than 3%
- Characteristic value cos-like rating f2, typical f2: less than 2%
- Temperature dependence: less than 0,1%, temperature compensated
