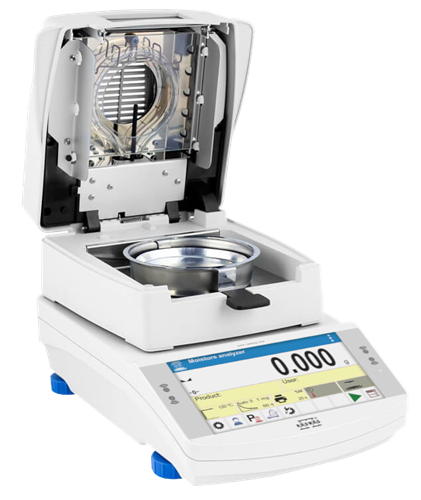

MA 50.X7.IC.A.WH Moisture Analyzer
Order Me In, once ordered this item will likely dispatch before the 23rd of August 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
MA X7.IC.A moisture analyzers are hi-tech measuring instruments intended for quick determination of relative moisture content,dry mass content and other parameters in samples of different substances. The main feature of...
$4,550.00 AUD Inc. GST
$4,550.00 AUD Inc. GST
$5,005.00 AUD Inc. GST Sale price
MA X7.IC.A moisture analyzers are hi-tech measuring instruments intended for quick determination of relative moisture content,
dry mass content and other parameters in samples of different substances. The main feature of this series is the drying chamber can be opened and closed automatically using button or proximity sensors. This innovation has several benefits such as:
- Maintaining moisture analyzer clean – operator does not touch moisture analyzer’s housing.
- Removing any shocks caused by manual closing of the chamber – the chamber closes automatically and always with the same intensity.
- Achieving high repeatability of opening and closing the drying chamber.
- Enhancing drying process automation.
- Enhancing safety of operation by eliminating contact with hot components of drying chamber.
- Improving operation ergonomics.
The MA.X7.IC.A series also features a user-friendly colour touchscreen. Free configuration of the control panel can be done by means of hotkeys, customizable information fields and programmable labels. Drying process can be carried out for any temperature and – thanks to databases – particular drying process may be set for a specific product.
MA.X7.IC.A maximum capacity ranges from 50g/0.1mg to 210g/0.1mg. Moisture content is measured with the 0.01% accuracy (0.001 % for samples bigger than 1.5g). The maximum drying temperature is 160˚C (there is an optional moisture analyzer with 250˚C maximum temperature).
An additional element for moisture analyzers that improves their functionality is a water vapour permeability determination set used in tanning industry for determining hygienic properties of leather.
Information system of X7 series moisture analyzers is based on 8 databases, allowing many users to operate product database comprising many samples. Collected measurements may be subjected to subsequent analysis.
Key Features
- Automatic opening and closing of the drying chamber
- 7” capacitive colour touchpad
- Modern interface
- Uncomplicated, intuitive operation
- Programmable display
- Drying profiles (standard, mild, step, fast)
- GLP/GMP printouts-reports
- Repeatable and customized applications
- Work optimization due to the use of halogen lamps
Specifications
- Maximum capacity [Max]: 50g
- Readability [d]: 1mg
- Tare range: -50g
- Adjustment: internal (automatic)
- Maximum sample weight: 50g
- Heating module: Halogen
- Display mode: %D, %M, %R, g
- Drying method: 4 drying profiles (standard, fast, step, mild)
- Finish mode: 4 modes (automatic, manual, time-defined, user-defined)
- Additional functions: sample traceability
- Communication interface: RS232¹, USB-A, USB-B, Ethernet, Wi-Fi®
- Moisture content repeatability: ±0.05 % (sample ~ 2 g), ±0.01 % (sample ~ 10 g)
- Moisture content readability: 0.001 %
- Drying temperature range: Max 250°C
- Leveling system: manual
- Display: 7″ graphic colour touchscreen
- Weighing chamber: automatic
- Maximum sample height: 20mm
- Power supply: 100 – 120 V AC 50/60 Hz or 200-240 V AC 50/60 Hz
- Power consumption: 6 W
- Heating module power: 450 W
- Weighing pan dimensions: ø90, h= 8mm
- Packaging dimensions (WxDxH): 476 x 381 x 346mm
- Net weight: 5.3kg
- Gross weight: 6.8kg
