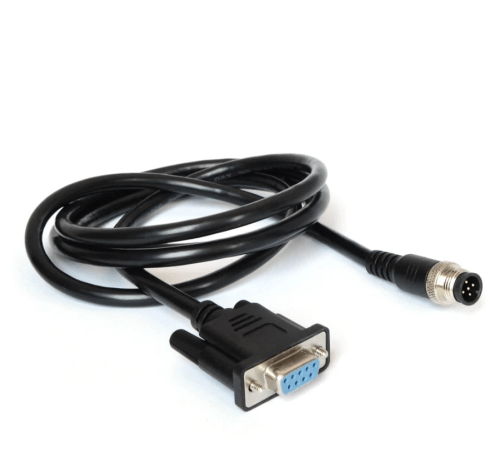

M12-to-DB9 5-Pin Adapter Cable [NMEA 2000, CANopen]

ORDER ME IN
Product code: DB9-M12

Backorder Now, once ordered your item will dispatch before the 15th of July 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

This 1.5 meter DB9 to M12 (5-pin) adapter fits most marine vessels and CANopen assets - and lets you easily connect your CANedge/CLX000 CAN logger to start recording CAN bus data.

Read more | Need help? 3 Hour Business Reply

$89.30 AUD + GST
 $98.23 AUD Inc. GST
Do you need to log NMEA 2000 data from boats/ships - or CANopen data from industrial machinery?
The DB9-M12 adapter cable is suited for use in most maritime vessels and in many industrial automation applications. The cable lets you connect your CANedge/CLX000 CAN logger directly to the CAN bus - providing access to the CAN bus, as well as providing input power/ground for your CAN logger.
Features:
- Marine: Suitable for NMEA 2000 maritime applications (boats, ships)
- CANopen: Suitable for CANopen applications (e.g. machinery)
- Over molded: Quality overmold ensures top flexibility & durability
- Solid Cables: Rugged quality 1.5m cable with 22 AWG (0.5 mm2) thickness
- Standard DB9: Fits our CAN loggers & all adapters (CiA 303-1 DB9 pinouts)

Specifications

- Adapter Cable Length: 150 cm
- Adapter: DB9 Pins In accordance with CiA 303-1
- Compatibility: High Speed CAN Bus (ISO 11898-2) incl. e.g. NMEA 2000 and CANopen
- Cable Thickness: 22 AWG (0.50 mm2)
- Connectors: 9-pin D-sub (DB9) female to M12 5-pin (male)
- Temperature: Operating temperature: -20degC to +80degC
- Weight: 130G
