LR8520 Wireless Fungal Logger

DISCONTINUED
Product code: LR8520

This product has been discontinued, call 1300 737 871 to discuss an alternative.

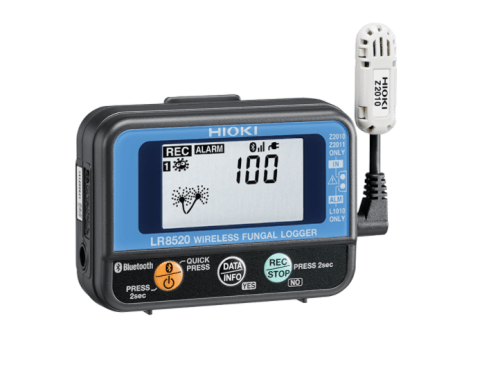

The LR8520 is a wireless and compact 1ch logger that records fungal index and growth prediction to easily prevent fungal growth.

-Helps prevent fungal occurrence in business critical locations.

-Calculate and display fungal index and growth prediction.

-Stores 500,000 data points per channel.

Read more

A compact 1-channel wireless logger that can predict the ease with which fungus grows. Supports:
- Fungal index: Calculated based on temperature and relative humidity. This index predicts how easy it is for fungi to grow. The fungal index is indicated by a value from 0 to 200, and can be used to predict the period of time until the start of fungal growth and contamination.
- Growth Prediction: Calculated based on the fungal index. Since fungal growth occurs when the necessary environmental conditions are maintained over a certain period of time, the cumulative value estimated from the fungal index can be used to predict fungal contamination.
Features:
- Easily Predict Fungal Growth Based on 2 Indices
- A wireless logger with Bluetooth whose data can be captured by a smartphone or PC
- Real-time monitoring
- Pocket size for installation anywhere
- The logger will operate for about 20 days on two AA-size alkaline batteries

Specifications

- Number of channels: 1 temperature channel plus 1 humidity channel - Display items: Temperature, humidity, fungal index (0 to 200), growth prediction (5 levels)
- Measurable range (Temperature): -40 to 80 C, Range 100C f.s., Max. resolution 0.1 C
- Measurable range (Humidity): 0% to 100% RH, Range 100% RH f.s., Max. resolution 0.1% RH
- Other functions: Measurement value, Date, Time, Number of recorded data, Maximum value, Minimum value, Average value, Alarm, Scaling, Recording operation hold function, Erroneous operation prevention, Comment recording function, Power saving function, Authentication function, Free run
- Recording Capacity: 500,000 data items for each channel [Mode] Instantaneous value [Interval] 0.5 sec to 30 sec, 1 min to 60 min, 14 selections
- Power supply: ACAdapter Z2003 (100 to 240 V AC, 50 /60 Hz), AA alkaline batteries (LR6) x 2, External power 5 to 13.5 V DC (can also be supplied from USB bus power via a conversion cable)
- Continuous operating time ([Capacity] 500,000 data items for each channel) (23 C) 3.5 months (Recording interval of 1 min, Bluetooth OFF), 20 days (Recording interval of 1 sec, Bluetooth ON), 5 days
- Dimensions and mass: 85 x 61 x 31 mm, 95 g (Not including the battery)
- Accessories: CD-R (Instruction Manual, Logger Utility, Wireless Logger Collector) x1, Measurement Guide x1, Caution for Using Radio Waves x1, AA alkaline batteries (LR6) x2 , Connection cable L1010 x1
