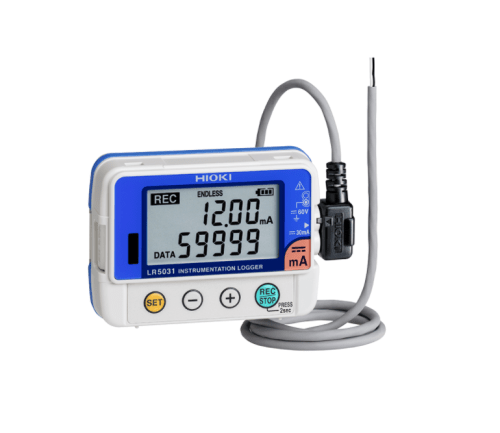

LR5031 Instrumentation Logger

ORDER ME IN
Product code: LR5031

Backorder Now, once ordered your item will dispatch before the 29th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The LR5031 logs instrumentation signals such as 4-20mA signals over 1 channel in as fast as 1 second intervals.

-4 to 20 mA DC measurement only.

-Records 60,000 data sets per channel.

-Record without missing fluctuations in STAT mode.

-Worry-free backup preserves recorded data even if a new measurement is started by mistake.

Read more

$419.90 AUD + GST
 $461.89 AUD Inc. GST
Features:
- 7 times the memory capacity than predecessor (Record 60,000 data per channel)
- Easily mount the light-weight, pocket-sized loggers in tight spaces
- Easy-to-see dual display
- Transfer data to PC even during recording
- Record without missing fluctuations in STAT mode
- Measurement data is preserved even after the battery dies
- Worry-free backup preserves recorded data even if a new measurement is started by mistake

Specifications

- Measurement items: DC current (1 ch), for Instrumentation
- Measurement range: -30.00 to 30.00 mA
- Accuracy: +/- 0.5 %rdg. +/- 5 dgt.
- Storage capacity: Instantaneous value mode: 60,000 data/ch, - Statistical value mode: 15,000 data/ch
- Recording interval: 1 to 30 sec., 1 to 60 min., 15 selections
- Recording modes: Instantaneous recording: at every recording interval. Statistical value recording: Measure at one second intervals, and record the instantaneous, maximum, minimum, and average values within every recording interval
- Recording methods: One-time recording: Stop recording when the memory capacity is full. Endless recording: Continue recording even when the memory capacity is full (old data is overwritten). Start: Logger button operation or scheduled time. Stop: Logger button operation or scheduled time, or auto-stop when the memory capacity is full (at one-time recording)
- Other functions: Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low
Note: After batteries are replaced within 30 seconds, recording resumes automatically (Recording is interrupted during battery replacement)
- Waterproof and dust-proof: IP54 (EN60529) (with sensor connected, but not including sensor tip)
- Interfaces: Infrared optical communications with LR5091, LR5092-20
- Power supply: LR6 (AA) Alkaline battery x1, Battery life: Approx. 3 months (Instantaneous recording, with 1-minute interval and auto power saving, at 20 C), Approx. 20 days (Instantaneous recording, with 1-second interval at 20 C)
- Dimensions and mass: 79 x 57 x 28 mm, 105 g
- Accessories: LR6 (AA) Alkaline battery (built-in internal) x 1, Connection Cable LR9801 x 1, Instruction manual x 1, Operation guide x 1, Kickstand x 1
