Home > LoRa Bee Module - Long Range Wireless Transceiver (915 MHZ) - IC-LoRaBEE-915-923
Dragino

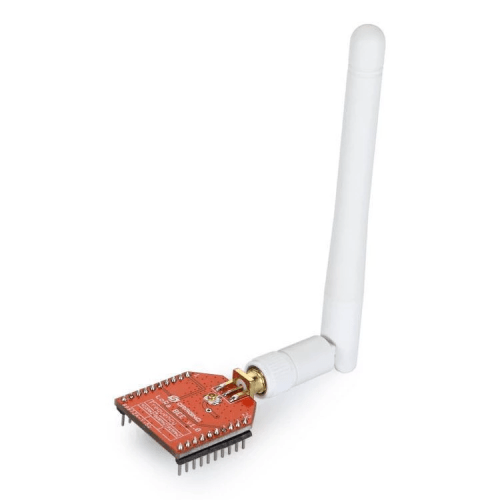

LoRa Bee Module - Long Range Wireless Transceiver (915 MHZ) - IC-LoRaBEE-915-923

ORDER ME IN
Product code: IC-LoRaBEE-915-923

Backorder Now, once ordered your item will dispatch before the 15th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The Lora BEE is a Lora module allows the user to send data and provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.

Read more

$24.00 AUD + GST
 $26.40 AUD Inc. GST
The Lora BEE is a Lora module allows the user to send data and provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.

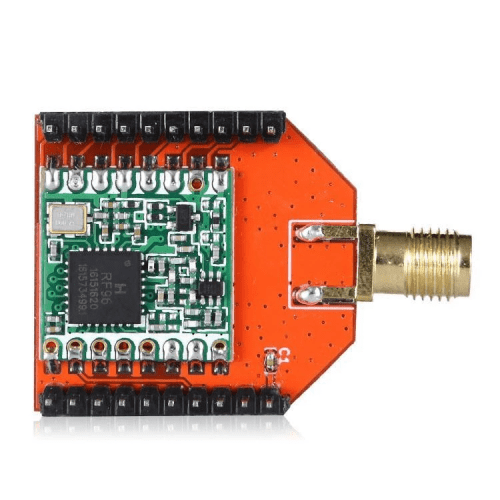

he Lora BEE is based on the SX1276/SX1278 transceiver. The Lora BEE targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, smartphone detection, building automation, and so on.

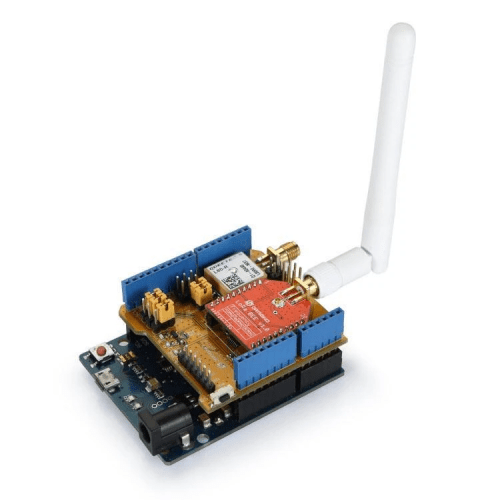

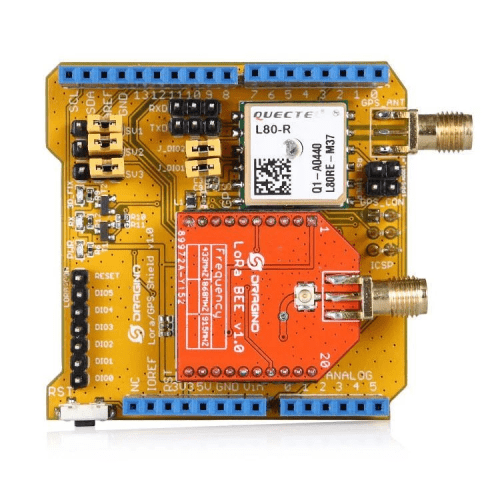

This product can connect with the Lora/GPS Shield mother board to build a Lora/GPS Shield. This LoRa long range modem provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption. LoRa also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.
Features:
- Frequency Band: 915 MHZ (Pre-configure in factory)
- LoRa Modem
- FSK, GFSK, MSK, GMSK, LoRa and OOK modulation
- XBee form factory

Specifications

- 168 dB maximum link budget.
- +20 dBm - 100 mW constant RF output vs.
- +14 dBm high-efficiency PA.
- Programmable bit rate up to 300 kbps.
- High sensitivity: down to -148 dBm.
- Bullet-proof front end: IIP3 = -12.5 dBm.
- Excellent blocking immunity.
- Low RX current of 10.3 mA, 200 nA register retention.
- Fully integrated synthesiser with a resolution of 61 Hz.
- FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
- Built-in bit synchronizer for clock recovery.
- Preamble detection.
- 127 dB Dynamic Range RSSI.
- Automatic RF Sense and CAD with ultra-fast AFC.
- Packet engine up to 256 bytes with CRC.
- Built-in temperature sensor and low battery indicator.
