Loop powered universal input, 4-20mA output transmitter (2 Wire) - XU2
Backorder Now, once ordered your item will dispatch before the 16th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$263.23 AUD Inc. GST

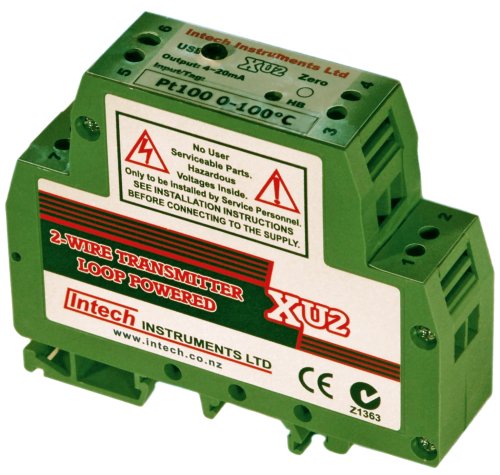

The Intech XU2 is a DIN Rail Mount, USB Programmable, Universal Input Transmitters with easy to use setup software. A universal input with a large selection of input types and a Loop Powered 4-20mA Output.
USB Programmable Universal-Input; 4~20mA Output (Loop Powered)
Standard = RTD Pt100, 0~100C Input; Upscale; 4~20mA Output.
Features:
Programmable via USB (requires the XU-USB programming key)
No power supply or calibration required during programming
Input Types:
- RTD Pt100 and Pt1000
- Thermocouple B, E, J, K, N, R, S, T
- For RTD and Thermocouple; Output is Linear with Temperature
- mA, mV and V
- Potentiometer
- 32 point curve fitter for mA, mV, V inputs
Input to Output Isolation 3750Vac
High Accuracy 0.1%
Reverse Polarity Protection
Heartbeat Status LED
Zero Adjust pot
Case Temperature range -20C to +80C
Compact DIN Rail Mount Enclosure
Easy to Install
Low Cost
Specifications
Output 2 wire 4~20mA / or 20~4mA - Loop Powered.
Power Supply 9.5~36Vdc.
Supply Voltage Sensitivity <0.005%/V FSO.
Output Load Resistance 700 @ 24Vdc. (50/V Above 9.5Vdc.)
Maximum Output Current Limited to <28mA.
EMC Emissions Compliance EN 61326
EMC Immunity Compliance EN 61326
Safety Compliance EN 61010-1
Accurate to <0.03% FSO Typical.
Linearity & Repeatability <0.02% FSO Typical. (Unless Individual Specifications State Otherwise)
Ambient Drift <0.003%/C FSO Typical.
Noise Immunity 125dB CMRR Average. (2.0k Vdc Limit.)
R.F. Immunity <1% Effect FSO Typical.
Signal Isolation Voltage Between Input and Output 3750Vac for 1 min. (Excluding XU2HN)
Response Time 400msec Typical. (From 10 to 90% 300msec Typical.)
Sensor Fail Low 3.8mA, High 21mA
Startup Time 3 seconds, 3.7mA output
Output calibrate via Pot 0.5mA Zero offset adjust. (Excluding XU2HN)
Operating Temperature -20~85C (XU2HN: -20~55C)
Storage Temperature -20~100C
Operating Humidity 5~85%RH Max. Non-Condensing.
Mounting 35mm Symmetrical Mounting Rail. In Head mount for XU2HI & XU2HN
Dimensions:
Height: 79mm Width: 20mm
