LoggerFlex BLOCK ANALOG - 4-20 mA Loop Data Logger - IC-BLA420

DISCONTINUED
Product code: IC-BLA420

Backorder Now, this item will leave store in 3-4 weeks, call 1300 737 871 ( NZ 0800 737 871 ) to confirm

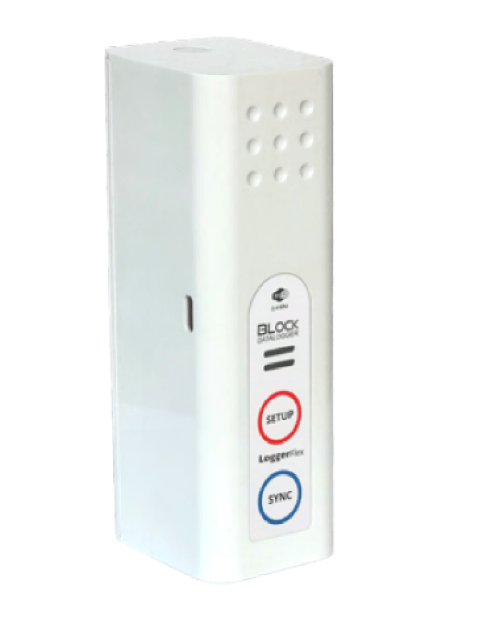

The LoggerFlex Analog  4-20 mA Loop data logger is from the Wifi Block series that measures 4-20 mA Loop Analog and ambient temperature. Also has an external port for dry contact (Digital Input).

  • Can measure and log measured parameters as long it has a WiFi connection. View measured data in your smart device.
  • Has an a silicon protective cover with IP31 protection.
  • Uses a USB-C connector so it can easily be powered using your desktop, laptop or other similar external power source.

Read more | Need help? 3 Hour Business Reply

The LoggerFlex Analog 4-20 mA Loop data logger is from the Wifi Block series that measures 4-20 mA Loop Analog and ambient temperature. Also has an external port for dry contact (Digital Input).
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)

Specifications

- Measurement range accuracy (4-20 mA Loop Analog): +/- 2%
- Measurement range (Ambient Temperature): -20 to 70 C (-4 to 160 F)
- Measurement accuracy (Ambient Temperature): +/- 0.2 C
- Dry contact: door magnet, male stereo socket, terminal adapter
- Sampling interval: User settings: 1 to 60 minutes - By order (depending on the model) down to 3 seconds
- Syncing interval: User settings: 3 hours to 7 days - By order down to 1 minute
- Protection class with Silicon Protector Cover: IP 31
- Compliances: IEEE 802.11b/g/n, FCC, EN 61326-1, EN 61010, EN 12830, CE, ROHS
- Battery: 2x AA batteries
- External power source:5 VDC to USB-C
- Dimensions (LxWxH): 53 x 43 x 133 mm
