LogBox Connect BLE

ORDER ME IN
Product code: IC-NOD-010

Order Me In, Once ordered this item will likely dispatch before the 17th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

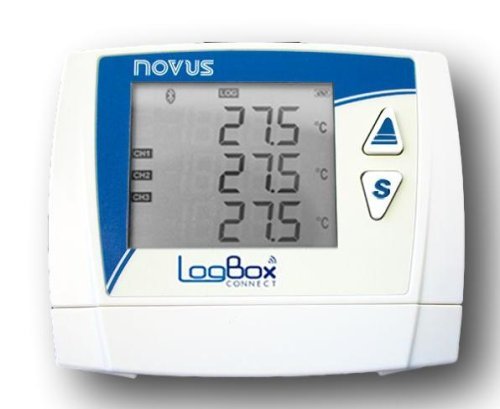

LogBox Connect BLE is a bluetooth data logger for up to three analog sensors and one digital. The analog channels accept direct connection of thermocouple temperature sensors or Pt100 and sensors for any other quantities with signals in current or voltage. The digital channel could either record events with time stamp, such as opening a door or counting pulses from a flow sensor.

Read more

$494.95 AUD + GST
 $544.45 AUD Inc. GST

LogBox Connect BLE is a bluetooth data logger for up to three analog sensors and one digital. The analog channels accept direct connection of thermocouple temperature sensors or Pt100 and sensors for any other quantities with signals in current or voltage. The digital channel could either record events with time stamp, such as opening a door or counting pulses from a flow sensor.

The logging interval of LogBox BLE is configurable, and the user can access the parameters using a desktop or notebook via USB interface with the NXperience software or using Android smartphone or tablet via Bluetooth with LogChart BLE app.
Both applications allow the configuration, download and analysis of the records; also they can be published into NOVUS Cloud, the cloud storage portal of NOVUS.
Since LogBox BLE is the first data logger of Connect family, it can be named as one of the best products on the market for applications that require accuracy in the recording of temperature data, such as laboratories, cold rooms, data centers, among others for requirements such as wireless technology recorder.
Smartphone Mobile App:
LogChart BLE is a mobile application that can be used into Android devices (Apple devices are in development), an ideal tool for daily operation as monitoring, data download or configuration of LogBox BLE, adding the mobility of Bluetooth communication to it. LogChart BLE can download data from several LogBox BLE and transfer the data to NOVUS Cloud.
NXperience PC Software:
NXperience software is the main tool for configuration and data download of LogBox Connect. All parameters and features can be adjusted through LogBox USB interface, turning NXperience into a powerful tool for data analisys, graphical view, creation of mathematical formulas and report issuance. Nxperience can download data from several LogBoxes and transfer the data to the NOVUS Cloud. It is also possible to generate reports in .pdf and .xls formats.
Features:
3 universal analog input channels:
- Thermocouples J,K,T,N,E,R,S,B
- Pt100, 0-50mV, 0-5V, 0-10V
- 0-20mA, 4-20mA
15 bit resolution
- Function of Digital Input
- Counts Pulses, Records Events or
- Starts Logger
Function of Digital Output
- 1 PNP Output (Electronic Switch or Alarm)
- Starts Logger
Internal Sensors
- NTC for temperature
- Battery Voltage
- External Power Supply
General specifications:
- Display: 3 lines with 4 and-a-half digits
- Memory Capability: 140000 records
- Record Interval: 1 sec to 18h
- Variable Record:Instantaneous or average
- Acquisition Trigger: Date/Hour, Start button, Digital Input or by Software
- Alarms: 8 Alarms (two per channel) Low and High
- Internal Buzzer: Yes
- Interface: USB and Bluetooth 4.1 (BLE)
- Configuration Software: NXperience (PC USB), LogChart-BLE (smartphone)
- Power Supply: 10-30Vdc and/or 4 AA alkaline batteries
- Battery Autonomy: Typical 2 years
- Dimensions: 120 x 100 x 40 mm
