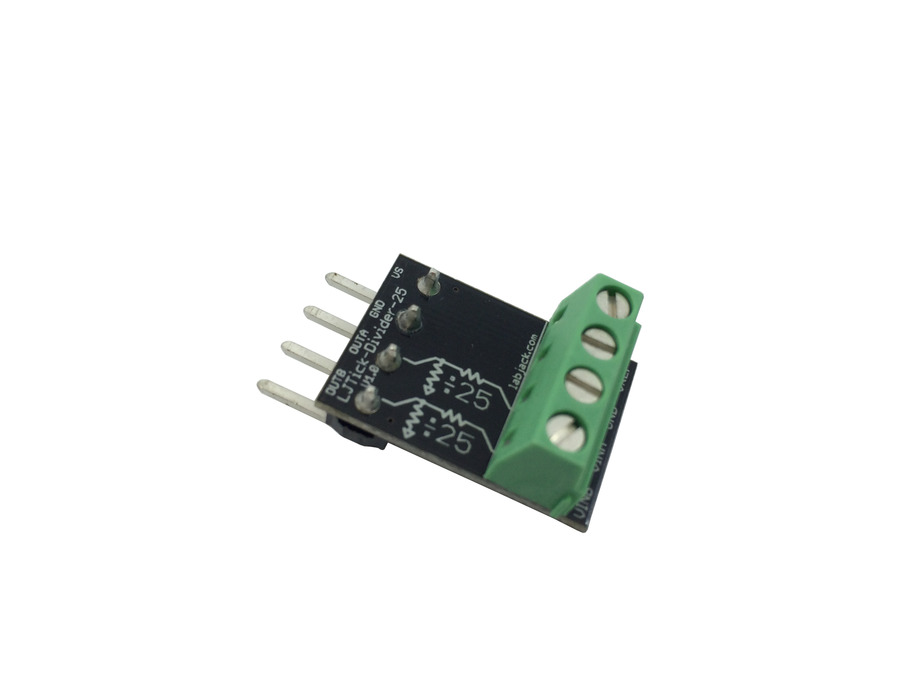

LJTick Divider

ORDER ME IN

Backorder Now, once ordered your item will dispatch before the 15th of July 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The LJTick-Divider (LJTD) is a signal conditioning module designed to take two single-ended higher voltage analog signals, and divide them by a specified value.

Read more | Need help? 3 Hour Business Reply

$56.36 AUD + GST
 $62.00 AUD Inc. GST

The LJTick-Divider (LJTD) is a signal conditioning module designed to take two single-ended higher voltage analog signals, and divide them by a specified value. These devices come in divide by 4, 5, 10, 25, and "C" or Custom. The 4-pin design plugs into the standard AIN/AIN/GND/VS screw terminal block found on LabJacks such as the U3, U6, UE9, T7, and T4. The use of large resistors and a precision op-amp buffer provides an input impedance of 1 megaohm. The resistors can be customized to allow for a wide range of configurations.

The LJTD can also be used with higher voltage digital signals. The LJTD-4 works for 12V or 24V logic. A 12V signal will divide down to about 3.0V which is a logic high for any LabJack. A 24V signal (or even much higher voltages) will result in about 3.5V, as that is the max output of the LJTD, and that also is a good logic high for any LabJack.
Naming Scheme
The naming scheme for the dividers reflects how much voltage reduction is performed on the input voltage. -4 indicates "Divide by 4", -5 indicates "Divide by 5", etc. As a quick example if you are using an LJTD-4 and you supply it 8V, the divider will output 2V.
