Kimo | See more Process Instruments | See more Transmitters

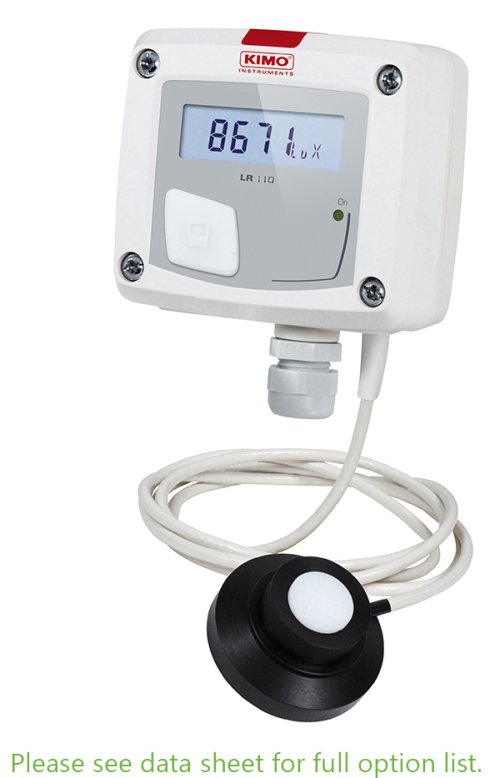

Light transmitter - LR110

ORDER ME IN
Product code: LR110-PO

Order Me In, once ordered this item will likely dispatch before the 17th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

Features:- Range from 0 to 10000 lux- 0-10 V active output, power supply 24 Vac/Vdc (3-4 wires) or 4-20 mA output, passive loop, power supply from 16 o 30 Vdc...

Read more

$829.60 AUD + GST
 $912.56 AUD Inc. GST
Features:
- Range from 0 to 10000 lux
- 0-10 V active output, power supply 24 Vac/Vdc (3-4 wires) or 4-20 mA output, passive loop, power supply from 16 o 30 Vdc (2 wires)
- ABS V0 IP65 housing, with or without display
- turn system mounting with wall-mount plate
- Housing with simplified mounting system

Specifications

:

Measuring ranges

From 0 to 10000 lux
From 0 to 929 fc

Accuracy*


3% of reading

Resolution

1 lux
0.1 fc

Type of fluid

Air and neutral gas

Operating temperature
From 0 to +50 C

Storage temperature
From -10 to +70 C

Spectral response
As per standard photopic curve V () NF C 42-710 class C

Error limit V() (f1)


<10 %

True cosine evaluation (f2)
<6 %

Linearity (f3)


<3 %
*All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed for measurements carried out in the same conditions, or carried out with calibration compensation.


Select the option that suits you the most:

LR110 + Power supply / Output
A= Active 24 Vac/Vdc 0-10 V
P= Passive 16/30 Vdc 4-20 mA
 		+ Display
O= with display
N= without display



Material : ABS V0 as per UL94
Protection: IP65
Display: LCD 10 digits. Size : 50 x 17 mm
Height of digits: Values : 10 mm ; Units : 5 mm
Cable gland: For cables 8 mm maximum
Remote probe: cable of 2 m length in PVC
Weight: 140 g
