Leica Lino P5 Five Point Laser - IC-LG777068
DISCONTINUED
Product code: IC-LG777068
Unfortunately, the LG777068 has been discontinued, check out our other Crossline Lasers for more options.

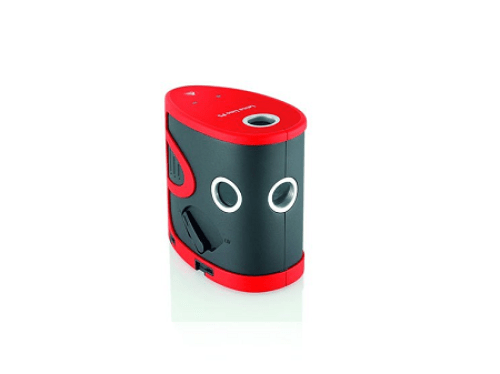

The Leica Lino P5 projects five laser beams, which are exactly at right angles to one another.It is the perfect tool for 90 degree layouts and vertical point transfer. Comes with carrying case, mag bracket, batteries and target.


Unfortunately, the LG777068 has been discontinued, check out our other
Crossline Lasers for more options.
Features:
Self-leveling: It is not necessary to tediously align the device to obtain horizontal or vertical lines. Minor angular misalignment of 4 are compensated automatically. If the angular misalignment is greater, the device does not project any lines preventing errors in measurement.
Setting out right angles: The Leica Lino P5 has five laser beams that are exactly at right angles to one another. This simplifies setting-out tasks and makes your interior finishing tasks more precise and efficient.
Alignment: Aligning of windows, partition walls and other building elements get done quick and easy. In addition to the plumb beams the Leica Lino P5 projects three horizontal points at exactly the same height.
Transferring measured points: Turn the rotatable adapter to transfer reference points in no time at all across the room from one wall to another. Leave your spirit level and string line in your toolbox.
Expanded range of applications: The adapter supplied with the Leica Lino P5 positions the instrument quickly and with absolute precision. You can set up the adapter over edges and profiles, attach it to circular columns or fix it to steel or iron pipes with the integrated magnets.
Specifications
Range: up to 50 ft depending on lighting conditions
Levelling accuracy at 16 ft: 1/16"
Self-levelling range: 4 0.5
Accuracy of plumb point at 5 m: 1/16"
Number of laser points: 5
Beam direction: up, down, forward, right, left
Laser type: 635 nm, laser class II
Batteries: type AA 3 1.5 V
Protection class: IP54 splash water / dust proof
Operating temperature: 14F to 104F
Storage temperature: -13F to 158F
Dimensions (H D W): 3.9 x 4.2 x 2.3 in
Weight without batteries: 11 oz
Tripod thread: 1/4 " -20
