Leica

Leica Lino L6Rs-1, 3x360 Laser Level Red Beam with Alkaline, Softcase

ORDER ME IN
Product code: LG918976

Order Me In, Once ordered this item will likely dispatch before the 03rd of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The Leica Lino L6Rs is a self-leveling red multi line laser with 360° laser line projection for multi-directional alignment—perfect for indoor applications. The laser’s vertical lines are easily adjusted (± 10°) once the plumb point is set. Uses alkaline batteries.

-Horizontal and two vertical 360° red laser lines.

-High visibility due to red Ultra-power laser diodes.

-Self-leveling over wide range.

Read more

$650.00 AUD + GST
 $715.00 AUD Inc. GST
Features:
- Horizontal and two vertical 360 red laser lines
- High visibility due to red Ultra-power laser diodes
- Self-leveling over wide range
- Fixed plumb point due to integrated base
- Adjustable strength of laser lines
- Operating range of up to 25 metres
- Uninterrupted working with Triple-Power concept
- Smart magnetic adapters for easy positioning

Specifications

- Beam horizontal: 360
- Beam vertical: l2 x 360
- Intersection points: up, down, right, left, front, back (90 / 180)
- Range/diameter*: 25m / 50m (82ft / 164ft)
- Range/diameter*with Leica RGR 200 receiver: 70m / 140m (230ft / 460ft)
- Leveling accuracy: 0.2mm/m ( 0.002in/ft)
- Horizontal and Vertical line accuracy: 0.3mm/m ( 0.004in/ft)
- Intersection point accuracy: 0.2mm/m ( 0.002in/ft)
- Self-leveling range: 4
- Self-leveling time: < 3sec
- Fine adjustment: 10 around vertical intersection point
- Out-of-level warning: yes-blink lines every 5 s
- Leveling: pendulum (lockable)
- Laser: 635nm/class 2 (acc. to IEC 60825-1)
- Protection class: IP54 (dust and splash water)
- Battery type: 3x AA Alkaline
- Laser line intensity (selectable): 100%, 75%, 50%
- Operating time: up to 25h (3 beam, 50% power
- Dimensions: 124 x107 x 154mm (4.88 x 4.21 x 6.06in)
- Weight: 781g (1.71 lbs)
- Operation temperature: -10 to +50C (14 to 122F)
- Storage temperature: -25 to +70C (-13 to +158F)
- Laser line width @ 5m(16.4ft)distance: < 2mm (< 0.08in)
- Tripod thread1/4in (5/8in with adapter)
- Pulse power for receiver: yes

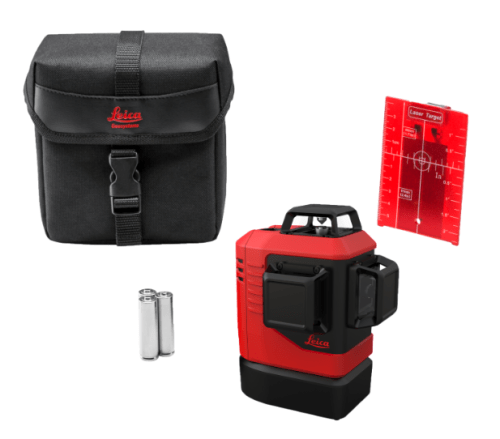

Includes:
- Leica Lino L6R
- Quick start guide
- Soft bag
- 3x AA Alkaline batteries
- Laser target
- Safety instructions
- Calibration certificate
- Warranty card
