Leica

Leica Lino L6R-1, 3x360 Laser red beam ,Li-ion, wallmount, Rugged case

ORDER ME IN
Product code: LG912969

Order Me In, Once ordered this item will likely dispatch before the 26th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The Leica Lino L6R is a self-leveling red multi line laser with 360° laser line projection for multi-directional alignment—perfect for indoor applications. The laser’s vertical lines are easily adjusted (± 10°) once the plumb point is set. Comes with the Leica Li-ion battery pack for longer operating hours.

-Horizontal and two vertical 360° red laser lines.

-High visibility due to red Ultra-power laser diodes.

-Uses Li-Ion power that lasts for hours. There is no interruption to your work for battery charging and no need to constantly exchange Alkaline batteries.

Read more

$900.00 AUD + GST
 $990.00 AUD Inc. GST
Features:
- Horizontal and two vertical 360 red laser lines
- High visibility due to red Ultra-power laser diodes
- Self-leveling over wide range
- Fixed plumb point due to integrated base
- Adjustable strength of laser lines
- Operating range of up to 25 metres
- Li-Ion power for up to 36 h operation
- Uninterrupted working with Triple-Power concept
- Smart magnetic adapters for easy positioning

Specifications

- Beam horizontal: 360
- Beam vertical: l2 x 360
- Intersection points: up, down, right, left, front, back (90 / 180)
- Range/diameter*: 25m / 50m (82ft / 164ft)
- Range/diameter*with Leica RGR 200 receiver: 70m / 140m (230ft / 460ft)
- Leveling accuracy: 0.2mm/m ( 0.002in/ft)
- Horizontal and Vertical line accuracy: 0.3mm/m ( 0.004in/ft)
- Intersection point accuracy: 0.2mm/m ( 0.002in/ft)
- Self-leveling range: 4
- Self-leveling time: < 3sec
- Fine adjustment: 10 around vertical intersection point
- Out-of-level warning: yes-blink lines every 5 s
- Leveling: pendulum (lockable)
- Laser: 635nm/class 2 (acc. to IEC 60825-1)
- Protection class: IP54 (dust and splash water)
- Battery type: Lino Li-Ion battery pack5200 mAh / 18.7 Wh or 3xAA Alkaline
- Laser line intensity (selectable): 100%, 75%, 50%
- Operating time with Li-Ion: up to 36h (3 beam, 50% power)
- Dimensions: 124 x107 x 154mm (4.88 x 4.21 x 6.06in)
- Weight: 781g (1.71 lbs)
- Operation temperature: -10 to +50C (14 to 122F)
- Storage temperature: -25 to +70C (-13 to +158F)
- Laser line width @ 5m(16.4ft)distance: < 2mm (< 0.08in)
- Tripod thread1/4in (5/8in with adapter)
- Pulse power for receiver: yes

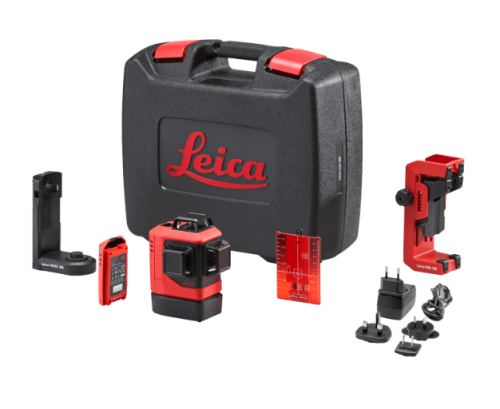

Includes:
- Leica Lino L6R
- Quick start guide
- Rugged case
- Li-Ion battery pack incl. charger and plugs
- Alkaline battery tray
- Laser target
- TWIST 250 magnetic multi functional adapter
- UAL 130 wall-mount adapter
- Safety instructions
- Calibration certificate
- Warranty card
