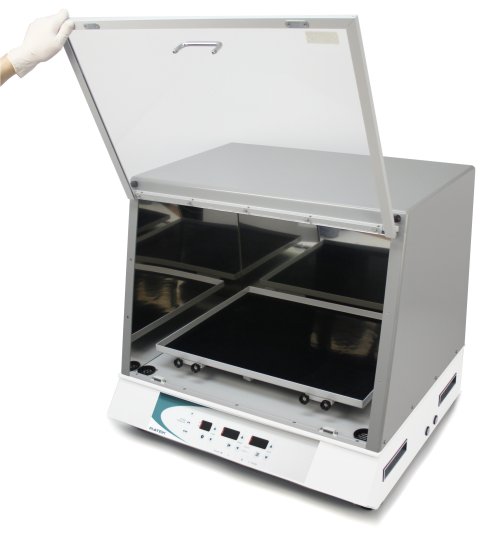

Large Orbital Shaker/Incubator - OM15
Unfortunately, the OM15 has been discontinued, check out our other Incubator Shakers for more options.Â
The OM15 is a heavy duty orbital mixer within a temperature controlled cabinet, and is designed to run for extended periods when required. Separate clearly marked controls and displays for temperature speed and timer ensure the OM15 is easy to use and monitor. Slow acceleration is incorporated in the drive system to reduce the risk of spillage, plus a safety system that cuts power to the drive if an overload or jamming occurs. Fan assisted heating coupled with the custom microprocessor control ensures accurate temperature control within the cabinet. The interior of the insulated cabinet is constructed from polished food grade stainless steel and the exterior from a corrosion resistant plastic. A Nitrile mat is supplied fitted to the platform and is sufficient for holding containers at low speeds. For higher speeds optional racks are available. The RR15 Universal rack is suitable for a variety of different sizes and types of container. Stainless steel Tulip clips are also available dedicated to conical flasks from 50ml to 2 litre.
Applications
Orbital Mixer/Incubator applications include Cell Culture, Staining/destaining, Hybridisations, Solubility Studies, Extraction procedures, Plasmid purification, Washing procedures, Bacterial suspensions, DNA fingerprinting, Protein expressions and General mixing
Specifications
| Power requirements | 240vac/900 watts | |
| Capacity | 600 x 450mm platform maximum capacity 15kg's | |
| Mixer control | Microprocessor control with tachometer | |
| Motor | Brushless AC | |
| Speed range | 40-400 rpm through an orbit diameter of 25mm | |
| Heater | Fan assisted spiral wound element | |
| Control range | Ambient + 7C to 70C | |
| Control stability | +/- 0.2 C | |
| Timer | 0-99 minutes or 0-99 hours with 3 presets | |
| Safety features | Motion interrupt cutout, over temperature cutout, door open drive cutout | |
| Overall dimensions | W750 x D650 x H652 mm |
