LAQUA TB220-K Portable Turbidity meter
Order Me In, Once ordered this item will likely dispatch before the 15th of January 2026, call 1300 737 871 (NZ 0800 737 871) to confirm.

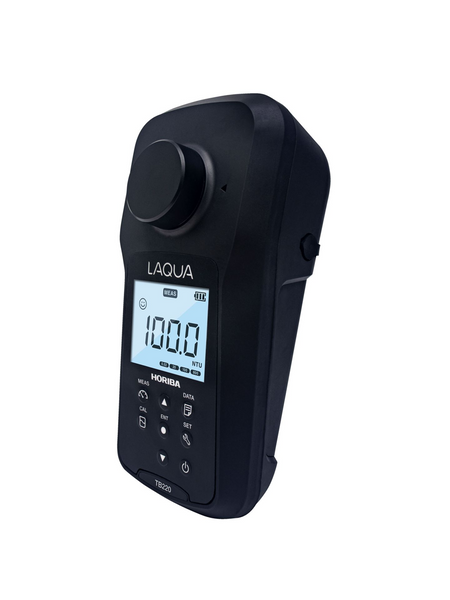

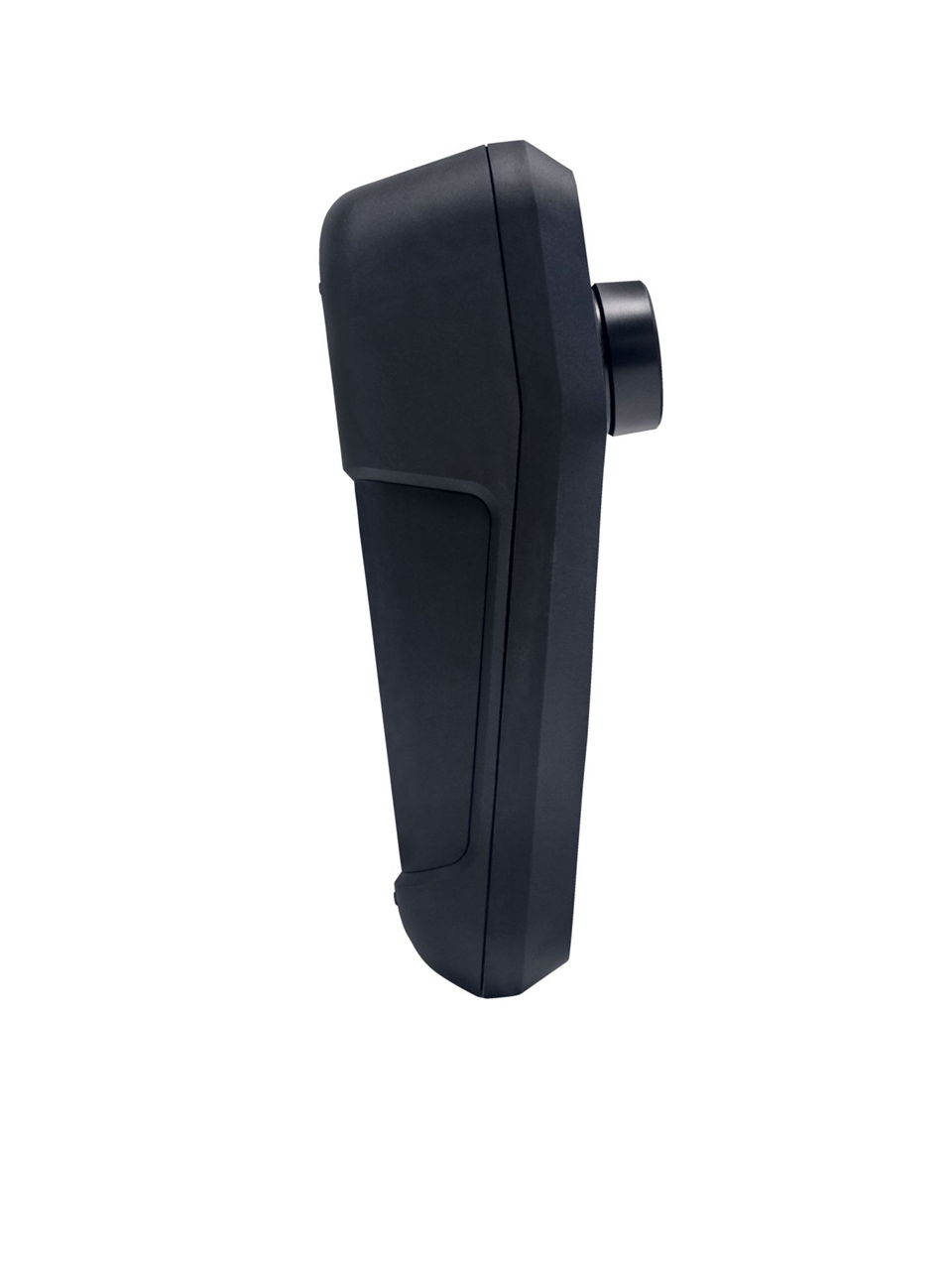

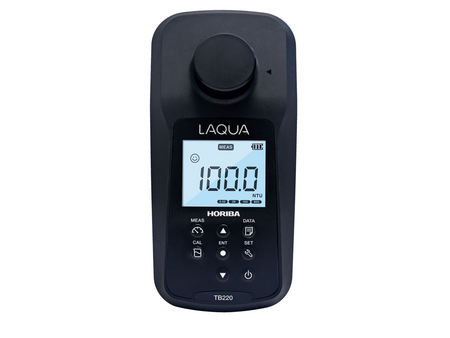

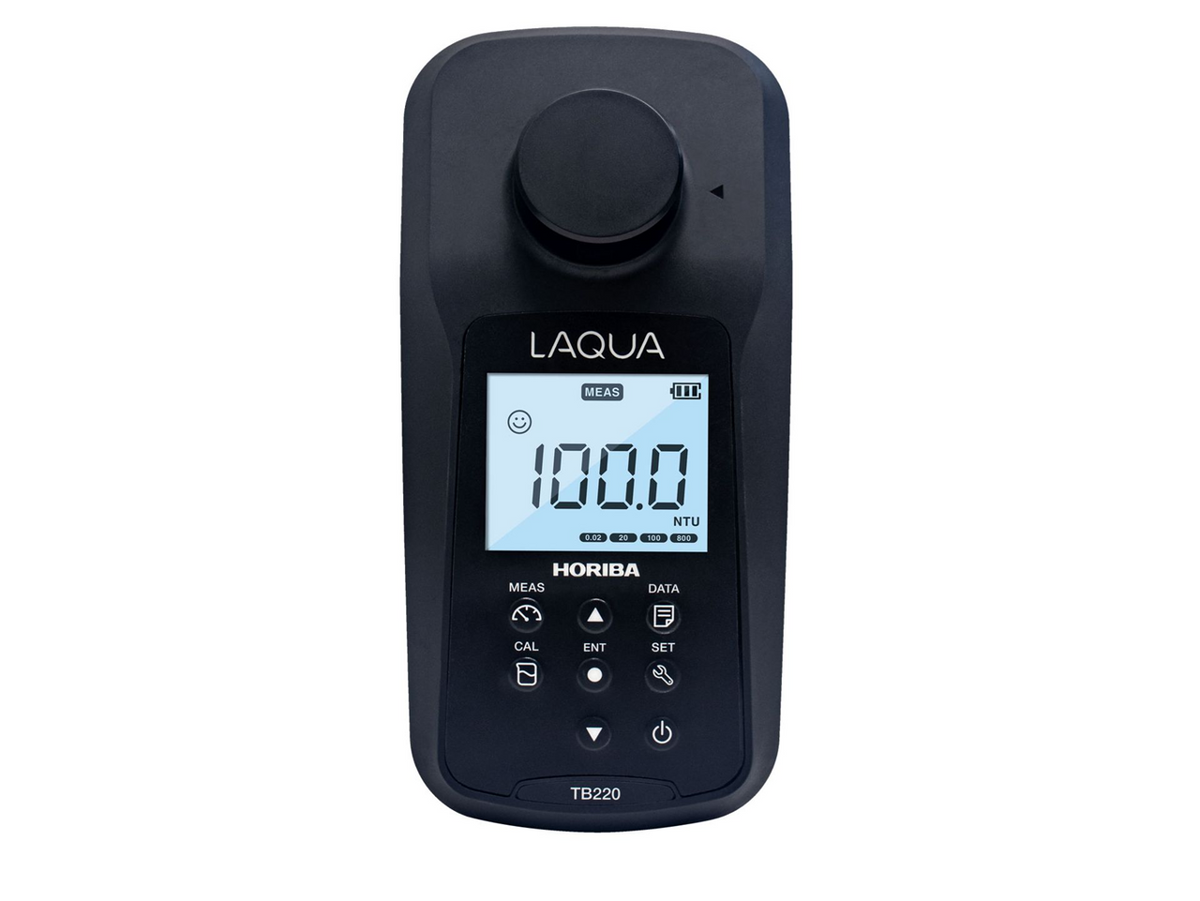

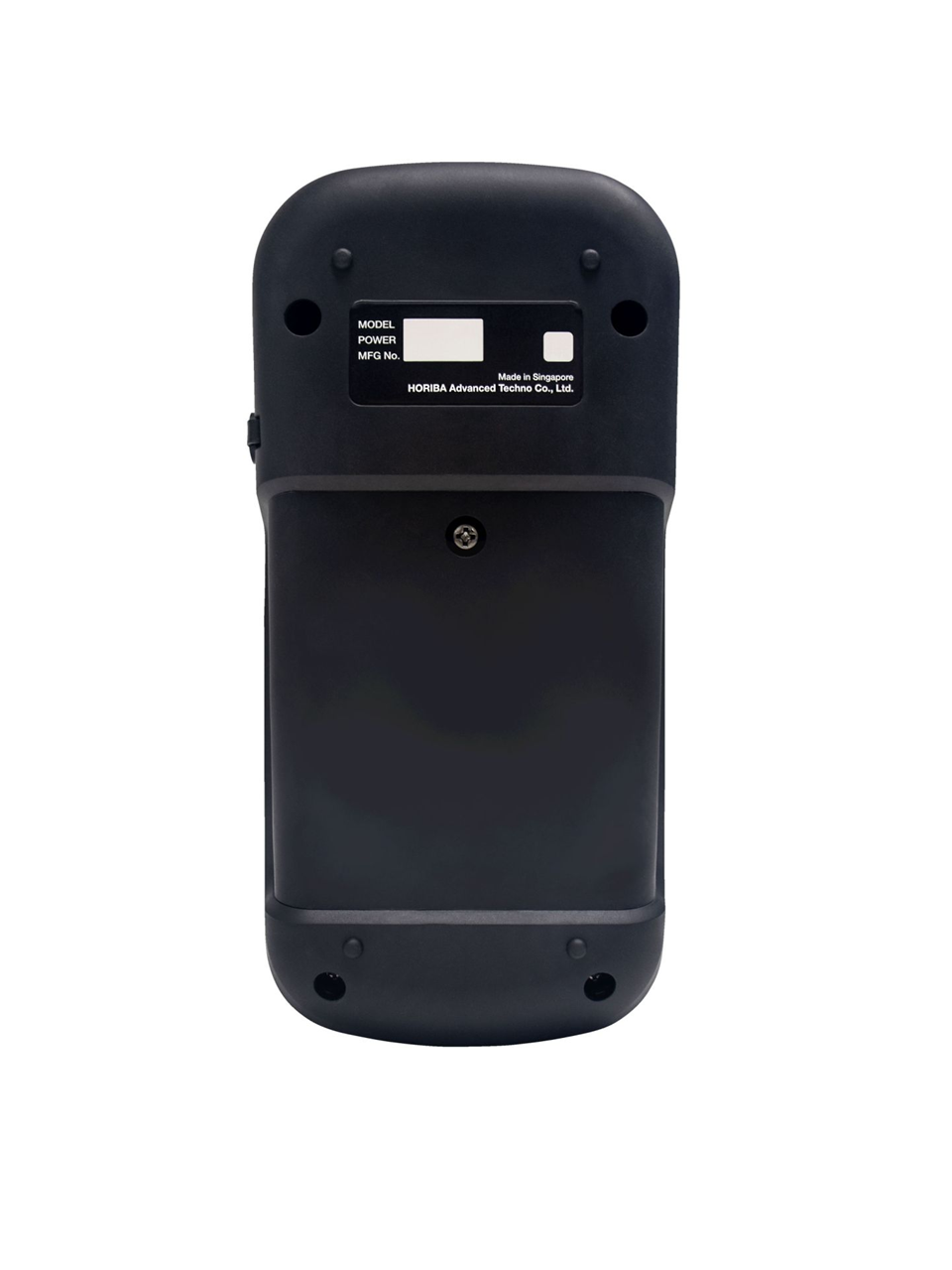

The HORIBA LAQUA TB220-K is a rugged, portable turbidity meter designed for high-precision water quality analysis across environmental, industrial, and laboratory settings.
- Measurement Range: 0.00 NTU to 2,000 NTU
- Waterproof and dustproof to IP67 (except for the vial mounting part)
- 4point calibration using SDVB polymer standards (0.02, 20, 100, 800 NTU) for high accuracy.
$1,864.50 AUD Inc. GST
The turbidity meter from HORIBA is the ideal solution for reliable turbidity measurements in a wide range of applications, from aquaculture to environmental monitoring, from drinking water and wastewater treatment to industrial process control and scientific research.
With a measuring range of up to 2000 NTU, the device complies with the international standards ISO 7027 and DIN/EN 27027.
Precise 4-point calibration ensures maximum measurement accuracy, while the robust IP67 protection rating reliably protects the device from water and dust, making it ideal for use in the field or under harsh conditions.
The backlit LCD display with stability indicator ensures comfortable readability of the measured values, even in poor lighting conditions. With a storage capacity of up to 2000 data sets, an automatic shut-off function, and an integrated PC interface, the TB220 enables easy data management and documentation directly on site. Whether in the laboratory or directly on site, the HORIBA LAQUA TB220 turbidity meter offers precise measurement results, intuitive operation, and a robust design that meets the requirements of modern water and environmental analysis.
Applications
- Environmental monitoring: Monitoring of rivers, lakes, wetlands, and natural water bodies
- Drinking water treatment: Ensuring water clarity and safety before and after treatment
- Wastewater treatment: Measurement of wastewater clarity, process optimization Aquaculture/fish farming: Monitoring water quality in ponds/tanks for fish health
- Industrial processes: Food, beverages, paper, textiles - clarity of process water
- Education/training on site: Schools, universities, environmental studies
- Aquariums & zoos: Maintaining clear water in aquariums and artificial habitats
- Shipping/ports: Monitoring ballast water or port sediments
- Agriculture: Controlling runoff and erosion effects from fields
- Mining/quarries: Monitoring wastewater with high sediment loads
- Scientific research: Hydrology, sediment transport, water quality in research projects
Features
- Waterproof and dustproof to IP67 (except for the vial mounting part)
- Shock-resistant, one-piece moulded housing made of special rubber and polycarbonate
- Up to 1000 memory points with data and time logging
- Communication between PC and printer
- Standard response time of 16 seconds to ensure highly accurate measurement results
- Uses non-hazardous SDVB standard solutions
- Stable liquid standards made from polymer bead dispersion
Specifications
- Range: 0.00 NTU to 2,000 NTU
- Resolution: Up to four significant digits
- Accuracy: < 1000 NTU: ±2% of reading or ±0.02 NTU. >1000 NTU: ±3%
- Repeatability: ±2% of reading or ±0.02 NTU
- Calibration points: Up to four points (0.02, 20, 100, 800 NTU)
- Standard solution: Styrene/divinylbenzene (SDVB), Polymer bead dispersion liquid
- Sample volume: 10 ml
- Measurement time: 16 seconds
- Measurement Method: 90° transmission light scattering method
- Light source: Near infrared LED 860 nm
- Detector: Silicon photodiode
- Compliance standards: ISO7027, DIN EN 27027
- Ambient operating temperature: 0 °C to 50 °C
- Ambient humidity: Relative humidity of 0% to 80% (without dew condensation)
- Memory: 1000
- Datalogging: Manual
- Real-time Clock: Yes
- Date/time Stamp: Yes
- Auto Shut-Off: Selectable 1 - 30 mins
- Software upgrade: Via PC (USB)
- PC communication: Yes, with USB cable / 3201055470
- Printer communication: Yes, with Printer cable / 3200779638
- Display: Monochrome custom LCD with backlight
- Outputs: USB
- Housing IP Rating: IP67 (excluding the vial mounting section)
- Power Requirements: 4 x AA alkali batteries (Ni-MH rechargeable batteries can be used)
- Battery level display: Available (100%, 50%, 20%)
- Battery Life: > 500 hours
- External dimensions: 210 (length) × 110 (width) × 55 (height) mm
- Weight: Approx. 410 g (excluding batteries)
- Storage environment temperature: -5°C to 50°C (without freezing the standard solution)
- Warranty: 3 years
