LAQUA EC1100-S Benchtop Cond/TDS/Salinity/Res/Temp Data Log Meter Kit
Unfortunately, the EC1100-S has been discontinued and has been replaced by the EC2000-S.

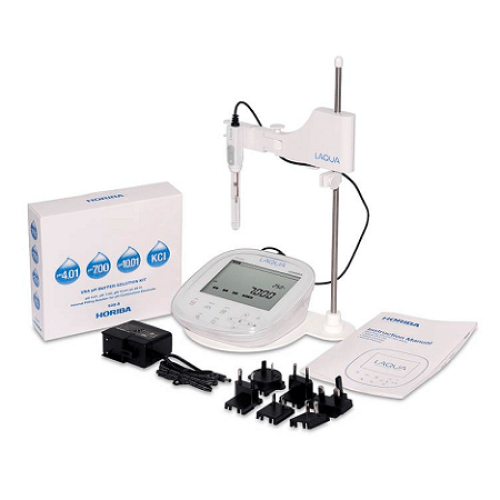

LAQUA EC1100 Benchtop Cond/TDS/Salinity/Res/Temp data log meter. Includes AC power adapter and electrode stand. This is a complete kit that also includes 9382-10D conductivity/temp electrode and 84uS/cm, 1413 uS/cm, 12.88mS/cm, 111.8mS/cm conductivity cal solutions.
- Automatic and manual conductivity calibration up to 4 points
- Adjustable reference temperature and temperature coefficient
- Selectable cell constant and measurement unit
- Automatic / Manual temperature compensation and temperature calibration function
- Conductivity and total dissolved solids (TDS) conversion
- Four (4) TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl
- Two (2) salinity calibration curves: NaCl, Seawater
- Built-in memory can store up to 500 data
- Auto-Hold / Auto-Stable measurement
- RS232 and USB outputs for connecting the meter to a printer or computer
- 2 years meter warranty
Specifications
:Electrical conductivity |
|
| Measuring range
|
..uS/cm to 19.99 uS/cm; ..uS/cm to 1999.0 uS/ cm; ..uS/cm to 20.00 mS/cm; .. US/cm to 200.0 mS/cm |
| Resolution | 0.05% over the measuring range (FS) |
| Accuracy | +/- 0.6% across the measuring range (FS) |
| Reference temperature | 5 to 30 C (adjustable) |
| Temperature Compensation | 0.0 10.0% (adjustable) |
| Constant battery | 0.1/1.0/10.0 |
| Calibration points | 4 |
| Unit of measurement | Automatically switches measuring range uS/cm or mS/cm or S/m |
| Total dissolved solids (TDS) | |
|
Measuring range |
0:01 to 9.99 ppm, 0.1 to 999.9 ppm
1 ppm to 10:00 ppt; 10 ppm to 100.0 ppt |
|
Resolution |
0:01 ppm/0.1 ppt |
|
Accuracy |
+/- 0.1% across the measuring range (FS) |
| TDS Graphs |
EN27888, 442, linear (0.40 ~ 1.0) |
| Resistivity | |
|
Measuring range |
0.000 ohms / cm to 20,000 ohms/ cm; 0:00 ohms /cm to 200.0milliohm
/cm |
|
Resolution |
0.05% over the measuring range (FS) |
| Accuracy | +/- 0.6% across the measuring range (FS) |
| Salinity | |
|
Measuring range |
0.0 to 100.0 ppt; 0:00 to 10:00% |
| Resolution | 0.1 ppt / 0.1% |
| Accuracy | 0.2% across the measuring range (FS) |
| Calibration graph | NaCl/sea |
| Temperature | |
|
Measuring range |
-30.0 ~ 130 degrees
C |
|
Resolution |
0.1 degrees
C |
|
Accuracy |
+/- 0.4 C |
| Temperature Calibration | Yes |
| Other features | |
| Memory | 500 data |
| Automatic Data logging | Yes |
| Clock | Yes |
| Auto-Hold | Yes |
| Automatic shutdown | Yes |
| Diagnostic messages | Yes |
| Display | LCD |
| Input | BNC, phono, DC socket |
| Output | RS232C, USB |
| Electrode stand | Integrated |
| Power | AC adapter 100-240V, 50/60Hz |
