LanTEK IV-S 500MHz Cable Certifier (With PL/CL Adapters) - IC-R163008
LanTEK IV-S 500MHz Cable Certifier (With PL/CL Adapters) - IC-R163008
ORDER ME IN
Backorder Now, once ordered your item will dispatch before the 17th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The LanTEK IV-S R163008 is a 500MHz cable certifier appropriate for Cat 6A/class EA and class FA, Cat 8 and Class I/II testing with Cloud-based data management software.
- Allows remote testing and viewing of results thanks to VisiLINQ technology that allows users to verfy results even without touching the handsets.
- Easy to use with an intuitive user interface; conduct a Cat6A test within 7 seconds.
- Compatible with off-the-shelf patch cords and does not require proprietary cords to operate.
Regular price
$16,559.80 AUD
+ GST
$18,215.78 AUD Inc. GST
$18,215.78 AUD Inc. GST
The LanTEK IV-S R163008 is one of the fastest and powerful cable certifier in the market today. It offers twice the speed with a dual-core processor, twice as much RAM and twice as much storage compared to previous TREND cable certifiers.
The VisiLINQ technology enables Field Technicians to initiate testing and view the result all without the need to carry or touch the certifier. Just press the VisiLINQ test button to start testing. In loud server rooms the visual indication makes for immediate identification of test status instead of relying on the simple beep of other certifiers.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
R163008 Features
- 7 second test time (Cat 6A): one of the fastest test times in the world.
- Patented VisiLINQ increases productivity: Operate the certifier in the palm of your hand.
- Certify up to 500MHz: Test up to 500MHz providing room for future ratified ISO/ TIA test standards.
- Label printer connectivity saves time: Create and print complex naming conventions to a label printer.
- Operates anywhere with a web browser: TREND AnyWARE Cloud operates on a PC, Mac and tablet devices (Android and iOS).
- Free storage: No need for separate servers or backup systems.
- Easy to find project files: Attach all project files including cable layout drawings, videos, and photos into the TREND AnyWARE Cloud. Everything you need in one place.
- Share reports easier: Use TREND AnyWARE Cloud to share links to the test reports eliminating the need to manually email large attachments.

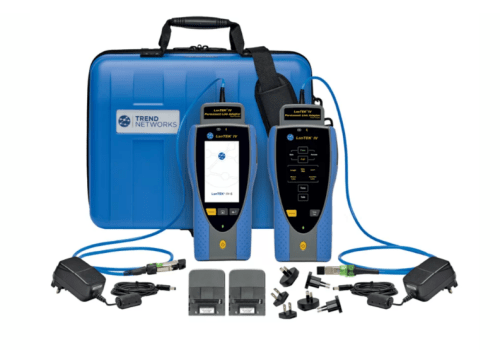

Standard package includes:
LanTEK IV-S 500MHz Cable Certifier. TIA Category 6A/ ISO Class EA. LanTEK IV-S Display/Remote handsets, Li-ion Battery (2), Univ. Power Adapter (2), Hang. Strap (2), Quick Ref. Guide, Carry Case, CAT6A RJ45 VisiLINQ Permanent Link Adapters (2), CAT6A Channel Adapters (2)
Specifications
Measurement time
|
Certification for Class EA / Cat 6A up to 500 MHz with plots, DC resistance unbalance, TCL/ELTCTL, time domain NEXT/Return Loss: 7 seconds |
Measurement details
|
ETL verified to meet ANSI / TIA-1152-A Level 2G, IEC 61935-1 Level VI
|
Length measurement
|
from 0 to 600m - display resolution
|
Resistance measurement range
|
0.02 to 200 ohms - display resolution
|
Propagation delay measurement range
|
1ns to 1s - display resolution
|
RF measurement details
|
ISO / IEC 61935-1 Ed 5, ANSI / TIA-1152-A -
|
display resolution
|
0.1dB
|
Screen
|
IPS capacitive color touchscreen, 480x854 pixels, 12.7mm
|
Weight of a handset with battery
|
1.1 kg
|
Dimensions
|
25.4 x 12.7 x 5.3cm
|
Operating temperature
|
0 to + 45 C, non-condensing
|
Storage temperature
|
-20 to + 70 C, non-condensing
|
Vibration/shock
|
MIL-PRF-28800 F, Class 3 (by design)
|
User interface
|
English, French, German, Spanish, Italian, Portuguese, Polish, Russian, Chinese, Japanese
|
Internal memory
|
non-volatile flash with a capacity of 2500 tests with plots and troubleshooting data
|
Charge time
|
8 hours in handset, 4 hours using external charging port.
|
Typical run time
|
8 hours. Mains operation - handsets can operate from mains power with or without battery installed.
|
Interfaces
|
2.4/5 GHz Wi-Fi - 801.11 b/g/n; USB C (USB 2.0) & USB A (USB 2.0); 3.5mm headset jack
|
Data Export
|
USB memory key, up to 512GB and/or Cloud via Wi-Fi
|
TREND AnyWARE Cloud
|
cloud version which requires an HTML 5 compatible browser on Windows, Mac, Linux, and mobile devices (Android/iOS)
|
TREND AnyWARE Desktop
|
computer version requires - Microsoft Windows 10, 2 GB RAM, 500 MB of disk storage + 1GB of storage for approximately for 1500 category 6/Class E tests
|
Supported cabling/test limits
|
ANSI/TIA: Cat. 3, 5e, 6, 6A and 8.1/8.2 (100 ohms), ISO/IEC: Class C, D, E, EA, F, FA, I/II (100 ohms), Fiber optic via optional FiberTEK IV modules: ultimode from OM1 to OM5 and single mode OS1-OS2
|
Supported test connectors
|
RJ45 Permanent Link: TIA Cat. 6A / ISO Class EA up to 500 MHz, Field replaceable heads on RJ45 permanent link adapters, recommended replacement interval every 2000 insertions, RJ45 Channel: TIA Cat. 6A / ISO Class EA up to 500 MHz, TIA Cat 8.2/ISO Class FA/ Class II: TERA, GG45, EC7 universal adapters for permanent link and channel measurements
|
