Home > Kyoritsu 8161 AC Load Clamp Sensor
Instrument Choice

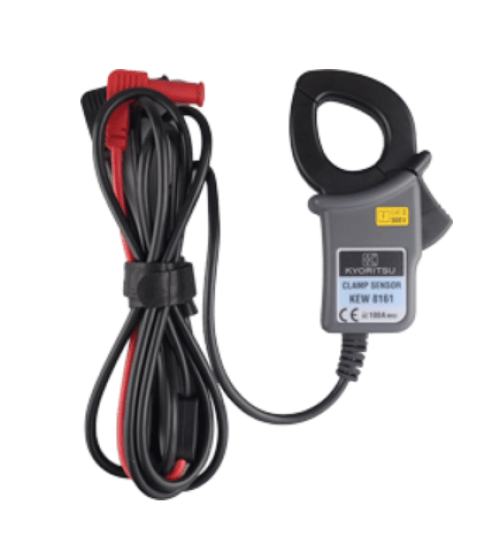

Kyoritsu 8161 AC Load Clamp Sensor

ORDER ME IN
Product code: 8161

Backorder Now, once ordered your item will dispatch before the 10th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

KEW 8161 clamp Sensor is designed to be an AC current/voltage conversion probe capable of measuring AC current up to 100A in conjunction with digital multimeters. - Conductor size: diameter...

Read more

$189.50 AUD + GST
 $208.45 AUD Inc. GST
KEW 8161 clamp Sensor is designed to be an AC current/voltage conversion probe capable of measuring AC current up to 100A in conjunction with digital multimeters.
- Conductor size: diameter 24
- Rated current: AC 100A
- Output voltage: AC 1000mV / VC 100A (AC 10mV/A)
- Accuracy: +/- 2.0%rdg +/- 3.0mV (45Hz - 65Hz) +/- 2.5%rdg +/- 3.0mV (65Hz - 1kHz)
- Cable length: Approx. 1.2m
- Output connector: 4mm banana plug
- Output impedance: Approx. 22 ohms
- Applicable standards: IEC 61010-1 CAT III 300V pollution degree 2, IEC 61010-2-032
- Operating temperature & humidity range: -10 to 50 C, less than 85% RH (without condensation)
- Dimensions: 97(L) x 59(W) x 26(D) mm
