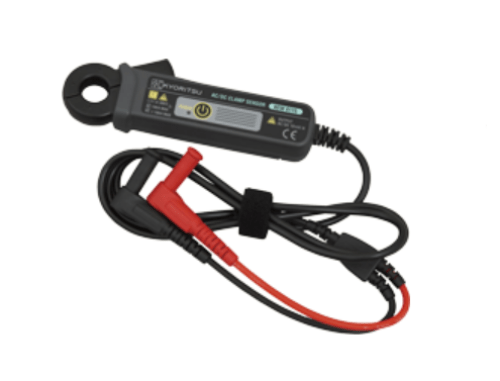

Kyoritsu 8115 AC/DC Clamp Sensor

1 AVAILABLE
Availability Info (?)
Product code: 8115

Specifications - Measuring range: AC 0.1 - 130Arms (185Apeak), DC 0 - +/- 180A - Output voltage: AC 10mV/A DC 10mV/A - Accuracy: +/- 1.2%rdg +/- 0.4mV (50/60Hz) +/- 2.5%rdg...

Regular price $629.40 AUD + GST
$692.34 AUD Inc. GST

Specifications

- Measuring range: AC 0.1 - 130Arms (185Apeak), DC 0 - +/- 180A
- Output voltage: AC 10mV/A DC 10mV/A
- Accuracy: +/- 1.2%rdg +/- 0.4mV (50/60Hz) +/- 2.5%rdg +/- 0.4mV (40 - 1kHz) +/- 1.2%rdg +/- 0.4mV (*)
- Low battery warning: 2.2V +/- 0.2V or less - Red LED flash (1.9V +/- 0.2V - Automatically power off)
- Conductor size: Max. 12mm
- Withstand voltage: AC 3540V (RMS 50/60Hz) for 5 sec.
- Operating temperature & humidity range: -10 to 55 C, relative humidity 85% or less (no condensation)
- Output impedance: Approx. 10 ohms or less
- Applicable standards: IEC 61010-1 CAT III 300V Pollution degree 2, IEC 61010-2-032, IEC 61326-1
- Power source: DC3V (size AAA alkaline battery LR032pcs). Continuous use: approx. 40 hours (Auto power off: approx. 20 minutes)
- Cord length: Approx. 1,200mm
- Output connector: 4mm diameter banana plug
- Dimensions: 127(L) x 42(W) x 22(D) mm
