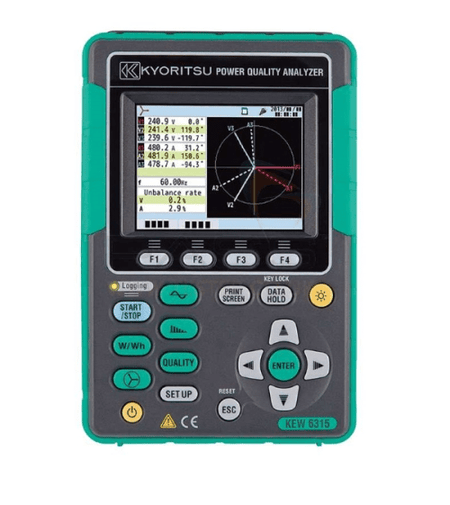

Kyoritsu 6315-01 Power Quality Analyzer

DISCONTINUED
Product code: 6315-01

For a personalised quote, add to cart. Then in the checkout choose create a quote.

The Kyoritsu 6315 Power Analyzer Measures voltage swells/dips/interruptions/transients and inrush currents that may indicate a weak power distribution system. Such phenomena may damage or reset devices. KEW 6315 can catch...

Read more

The Kyoritsu 6315 Power Analyzer Measures voltage swells/dips/interruptions/transients and inrush currents that may indicate a weak power distribution system. Such phenomena may damage or reset devices. KEW 6315 can catch swells/dips/interruptions and inrush currents based on half cycle (10 ms at 50Hz or 8.3ms at 60Hz) TRMS.
All necessary data is displayed by pressing one key. The Kyoritsu 6315 can safely measure currents of up to 3000A. As well as the performance analysis, the Kyoritsu 6315 can execute a complete network analysis. The Power Analyzer also measures the phase angle, harmonics, apparent power, active power, and work.
With four current channels* and 3 voltage channels built-in, the Kyoritsu 6315 captures and records power, harmonic, waveform and power quality events from multiple sources simultaneously.
This power analyser is capable of tracking and storing data on practically every type of electrical and power factor. It can perform voltage, current, frequency, active power, reactive power, apparent power, active energy, reactive energy, apparent energy, power factor (cos), neutral current, demand, harmonics, quality (swell/dip/interruption, transient/overvoltage, inrush current, unbalance rate) capacitance calculation for PF correction unit and flicker procedures.
These measurement are recorded in real time on the included 2GB SD card. Data can then be easily transferred to PC using the card, a USB cable or it is possible to view data back wirelessly via Bluetooth using a compatible Android device and the KEW smart 6315 app (available on the Google Play Store).
Features:
- Harmonic Analysis
- Measurement of voltage and current
- Up to 3000 A
- Long recording duration for more than 1 year
- Frequency measurement up to 40 Hz 70 Hz
- Memory of up to 2 GB
- USB and Bluetooth interface
Includes:
- Kyoritsu 6315 x 1
- Kyoritsu 8125 x 3
- 7141B (Voltage test lead set: 4pcs) x 1
- 7170 (Power cord) x 1
- 7219(USB cord) x 1
- 8326-02 (SD card [2GB]) x 1
- 9125 (Carrying case) x 1
- Input terminal plate x 1
- PC Software x 1
- Battery x 6
- Quick manual x 1

Specifications

Kyoritsy 6315
