Home > Kyoritsu 6010B 5 in 1 Multifunction Tester
Kyoritsu

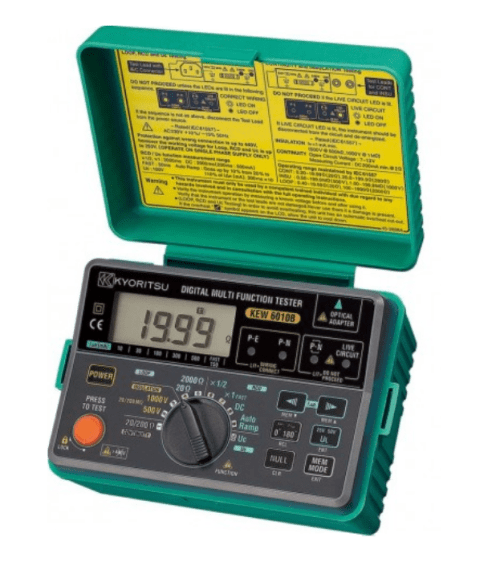

Kyoritsu 6010B 5 in 1 Multifunction Tester

1 In Stock
Product code: 6010B

The Kyoritsu 6010B is a 5 in 1 Digital Multifunction Tester capable of continuity, insulation, loop and RCD testing as well as measuring continuous operating voltage of a protective device (Uc). The 6010B features an easy to use handheld design with built in memory (up to 300 results) and a large dual display with bright backlight and bar graph.

Read more

$1,059.10 AUD + GST
 $1,165.01 AUD Inc. GST
The Kyoritsu 6010B is a 5 in 1 Digital Multifunction Tester capable of continuity, insulation, loop and RCD testing as well as measuring continuous operating voltage of a protective device (Uc). The 6010B features an easy to use handheld design with built in memory (up to 300 results) and a large dual display with bright backlight and bargraph.
The Kyoritsu 6010B is an advanced multifunction meter that can perform continuity testing up to 200 ohms with a short circuit current up to 200mA DC. Insulation resistance can also be measured up to 200 milliohms with a 500 V DC test voltage. The 6010B integrates several safety features including a live circuit warning LED to indicate the circuit under test is live as well as integral overload protection on internal continuity and insulation test circuitry. Contact voltage (Uc) can also be measured up to 100V.
In addition, the Kyoritsu 6010B can perform loop and RCD testing. This includes testing across a large range of currents (10/30/100/300/500 mA) and an auto ramp function. The instrument also features a built memory to store up to 300 measured results. The results can then be downloaded to PC using the optional communication adaptor and PC software.
The Kyoritsu 6010B is supplied with test leads, case, shoulder strap and batteries.
Features:
- 5 in 1 Tester - Continuity, Insulation, Loop, RCD Testing and Uc.
- RCD Testing - 10/30/100/300/500 mA ranges, Fast Trip (40ms) and Auto Ramp
- Live circuit warning LED: Immediate illumination of a warning lamp if the circuit under test is live.
- Built-in memory (up to 300 results).
- 500V DC test voltage for insulation tests.
- 200mA short circuit current on continuity ranges.
- Wiring connection check LEDs: Immediate indication if wiring of circuit under test is correct (Loop & RCD).
- Contact voltage (Uc) up to 100V.
