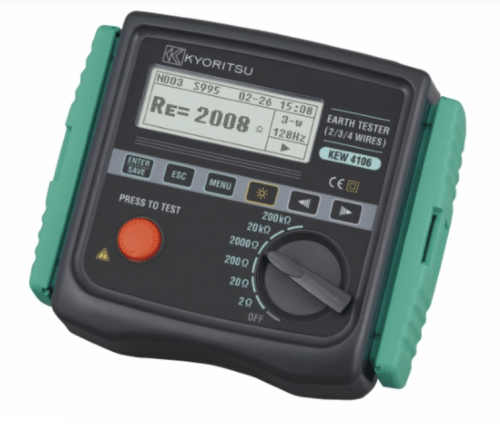

Kyoritsu 4106 Ground Resistance and Earth Tester

ORDER ME IN
Product code: 4106

Backorder Now, once ordered your item will dispatch before the 07th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

Kyoritsu 4106 is a 2/ 3/ 4-wire digital earth resistance/earth resistivity tester, equipped with a microcomputer, for measuring earth resistances and calculating earth resistivities. It has an output voltage of...

Read more

$4,249.70 AUD + GST
 $4,674.67 AUD Inc. GST
Kyoritsu 4106 is a 2/ 3/ 4-wire digital earth resistance/earth resistivity tester, equipped with a microcomputer, for measuring earth resistances and calculating earth resistivities.
It has an output voltage of 10 Vrms or lower. This makes it an instrument of choice for measuring earth resistances on installations ranging from in-house wiring systems and electrical appliances to power distribution lines.
Sub-results that can be shown on the display include resistance of the auxiliary earth spikes, frequency of test current, voltage and frequency of interference (noise) and residual resistance Rk.
Features:
- High test current up to 80mA yielding resolution of 0.001 ohms on 2 ohms range.
- Advanced Filtering method (based on FFT Fast Fourier Transform) reduces noise interference for obtaining stable measurements.
- Automatic and Manual selection of the Test Current Frequency in four bands (94/105/111/128Hz). In Automatic mode, KEW 4106 will select the most suitable Frequency.
- Several sub-results can be shown on the display: Resistance of the Auxiliary Earth Spikes, Frequency of Test Current, Voltage and Frequency of Interference (noise), Residual Resistance Rk, etc.
- Warning for excessive noise and high Auxiliary Earth Spikes resistance.
- Large Graphic Display with backlight for readings in poorly illuminated areas.
- Up to 800 measurement results can be saved in the memory and recalled on the display.
- The stored results can be transferred to a PC using the KEW Report software and a USB adaptor (Model 8212-USB) which are included.
- Robust design with IP54 protection.
