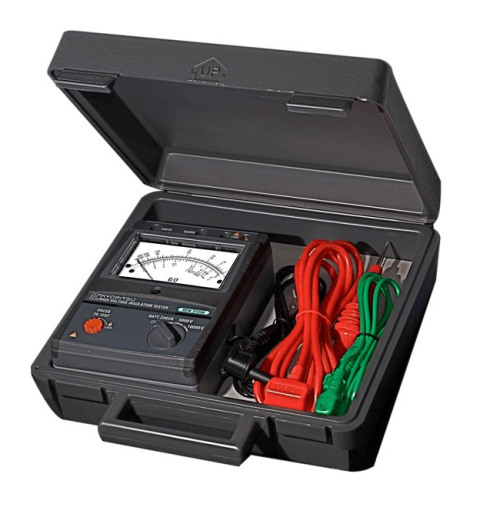

Kyoritsu 3123A Analogue HV 5/10kV Insulation Tester

DISCONTINUED
Product code: 3123A

Unfortunately, the 3123A has been discontinued and has been replaced by the 3124A.

The Kyoritsu 3123A is an analogue, high voltage insulation tester, capable of testing insulation resistance up to 10kV. Simple to operate, the 3123A insulation meter features automatic range detection across the two scales (5kV and 10kV), which is indicated by the different LEDs.

Read more

The Kyoritsu 3123A is an analogue, high voltage insulation tester, capable of testing insulation resistance up to 10kV. Simple to operate, the 3123A insulation meter features automatic range detection across the two scales (5kV and 10kV), which is indicated by the different LEDs.
Incorporating an auto-discharge function, the Kyoritsu 3123A is supplied with a detachable high voltage line probe. The 3123A megohmmeter is drip proof and housed in a rugged case, making it suitable for field use.
Incorporating an auto-discharge function, the Kyoritsu 3123A is supplied with a detachable high voltage line probe. The 3123A megohmmeter is drip proof and housed in a rugged case, making it suitable for field use.
Features:
- Measures insulation resistance up to 10kV.
- Simple operation.
- Automatic range detection, indicated via different LEDs.
- Drip proof.
- Easy to read scale.
- Auto discharge function.
- Supplied with hard carry case.

Specifications

Insulation Resistance:
- DC Test Voltage: 5000/10000V
- Measuring ranges (automatic change): 5 gigaohms/200 gigaohms (Auto-ranging) (5000V), 10 gigaohms/400 gigaohms (Auto-ranging) (10000V)
- First effective measuring range: 0.2 to 100 gigaohms (5000V), 0.4 to 200 gigaohms (10000V)
- Accuracy: +/- 5% rdg
- Other ranges accuracy: +/- 10% rdg or 0.5% of scale length
General:
- Power source: R6 (AA) (1.5V) x 8
- Dimensions: 200 (L) x 140 (W) x 80 (D) mm
- Weight: approx. 1kg
Includes accessories:
- 7165A (Line probe) (3m)
- 7224A (Earth cord) (1.5m)
- 7225A (Guard code) (1.5m)
- 8019 (Hook type prod)
- 9158 (Hard case)
- R6 (AA) x 8
- Instruction manual
