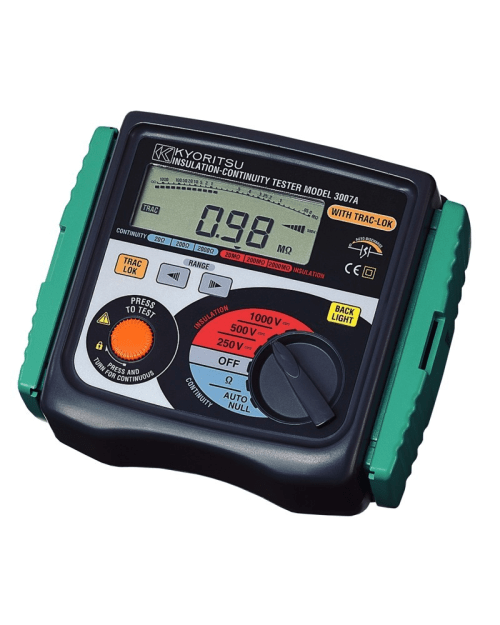

The Kyoritsu 3007A Digital Insulation and Continuity Tester is capable of measuring insulation resistance up to 2000 milliohms and continuity up to 2000 ohms, via a 200mA continuity test current.
Possessing a digital LCD screen, with backlight to view results in dimly lit areas, the 3007A features a bar graph to display insulation resistance as well as the ability to display external AC voltage. This Kyoritsu insulation tester also applies an auto null function to automatically subtract test lead resistances before displaying the real continuity resistance value.
The Kyoritsu 3007A integrates various safety features. A live circuit warning beeper is present as well as auto discharge on the release of the test button. In addition, the 3007A model features a Trac-Lok mode to conserve battery life on both the insulation and continuity tests. The Kyoritsu 3007A is supplied with test leads, a cord case, two fuses, a shoulder strap and batteries.
Features:
- Bargraph to display insulation resistance, up to 2000M (250V/500V/1000V)
- Measures continuity up to 2000.
- Displays the value of external AC voltage along with flashing symbol.
- Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value.
- Live circuit warning beeper.
- Trac-Lok mode to conserve battery life on insulation and continuity tests.
- Releasing the test button automatically discharges the charges stored in the circuit under test.
- 200mA continuity measuring current to IEC 61557.
- Minimum 1mA current on insulation tests to IEC 61557.
- Digital LCD screen with backlight.
- Auto power off
Specifications
Insulation Resistance:
- Test voltage: 250V/500V/1000V
- Measuring ranges (Mid-scale value): 20 milliohms/200 milliohms/2000 milliohms
- Output voltage on open circuit: Rated test voltage + 20%, -0%
- Nominal current: 1mA DC min.
- Output short circuit current: 1.5 mA DC approx.
- Accuracy: +/- 1.5%rdg +/- 5dgt (20 milliohms/200 milliohms) +/- 10%rdg +/- 3dgt (2000 milliohms)
Continuity Test:
- Measuring ranges (Mid-scale value): 20 ohms/200 ohms/2000 ohms
- Output voltage on open circuit: 7 - 12V DC
- Measuring current: 200mA DC min.
- Accuracy: +/- 1.5%rdg +/- 5dgt (20 ohms) +/- 1.5%rdg +/- 3dgt (200 ohms/2000 ohms)
AC Voltage:
- AC voltage range: 0 - 600V AC
- Accuracy: +/- 5%rdg +/- 3dgt
General:
- Safety Standard: IEC 61010-1 CAT III 300V Pollution Degree 2, IEC 61010-2-031 IEC 61557-1/2/4, IP Rating IEC 60529-IP54
- EMC Standard: IEC 61326-1
- Power source: R6 (AA) (1.5V) x 8
- Dimensions: 167(L) x 185(W) x 89(D)mm
- Weight: 970g approx
