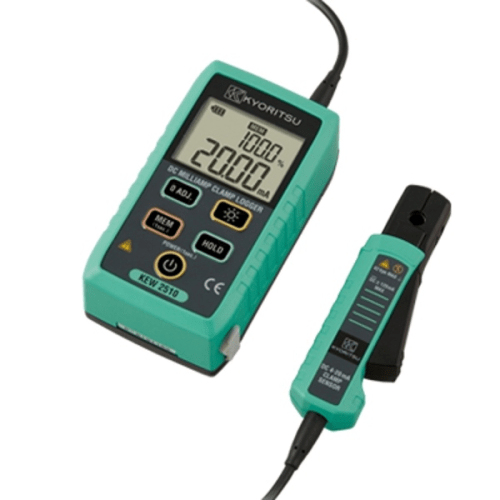

Kyoritsu 2510 DC Milliamp Process Clamp Logger

ORDER ME IN
Product code: 2510

Backorder Now, once ordered your item will dispatch before the 20th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

Kyoritsu 2510 measures 4 to 20 mA instrumentation and processes signals without breaking the loop. You can also transfer data to you PC via Bluetooth for easy access. Features: -...

Read more

$2,039.80 AUD + GST
 $2,243.78 AUD Inc. GST
Kyoritsu 2510 measures 4 to 20 mA instrumentation and processes signals without breaking the loop. You can also transfer data to you PC via Bluetooth for easy access.
Features:
- Memory function stores up to 192000 data useful for monitoring the signals over time and fault finding
- Transfers data to PC via Bluetooth
- Top class measurement 0.2% accuracy
- 6mm clamp jaw is easy to use in tight places
- LED light for illuminating the measurement spot
- Analog output terminal to allow the connection to a recorder or a digital multimeter
Applications:
- Residential
- Industrial
- Commercial
- Electrical Engineering
- Electronic Testing

Specifications

- AC A: 20/100mA(Auto ranging) +/- 0.2%rdg +/- 5dgt (0.00mA - 21.49mA), +/- 1.0%rdg +/- 5dgt (21.0mA - 120.0mA)
- Conductor size: 6mm diameter max.
- Analog output Recorder: DC1000mV against DC100mA
- Applicable standards: IEC 61010-1, Pollution degree 2, IEC 61010-2-032, IEC 61326-1(EMC), IEC 60529 IP40, EN50581(RoHS)
- Operating temperature & humidity range: -10 - +50 C <85%
- Storage temperature & humidity range: -20 - +60 C <85%
- Power source: R6/LR6(AA) (1.5V) x4 (Alkaline LR6 is recommended.)
- External supply: AC adapter MODEL8320
- Communication interface: Bluetooth Ver2.1+EDR Class2
- Dimensions / Weight: 111(L) x 61(W) x 46(D)mm: Display unit/104(L) x 33(W) x 20(D)mm: Sensor
700mm: Sensor Cable. Approx. 310g (including batteries)
- Included Accessories: 8320 (AC adapter), KEW Windows for 2510 (Software), 9096 (Carrying case), LR6 (AA) x4, Instruction manual
