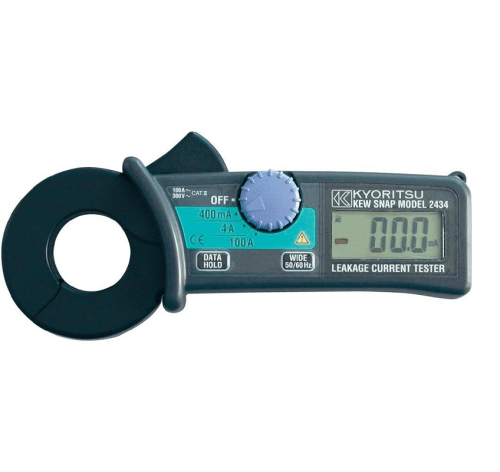

Kyoritsu 2434 AC Leakage 100A Clamp Meter

ORDER ME IN
Product code: 2434

Backorder Now, once ordered your item will dispatch before the 20th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The Kyoritsu 2434 is a 100A AC clamp meter, with the ability to measure current leakage. Comprising a 28mm jaw, the 2434 model is ideal for detecting wire faults and...

Read more

$872.72 AUD + GST
 $960.00 AUD Inc. GST
The Kyoritsu 2434 is a 100A AC clamp meter, with the ability to measure current leakage. Comprising a 28mm jaw, the 2434 model is ideal for detecting wire faults and insulation breakdown.
The Kyoritsu 2434 is a current leakage clamp meter, capable of measuring AC current up to 100A across three scales (400mA/4/100A). The tester features a frequency selector switch to eliminate the effect of harmonics. This provides a more accurate measurement, especially at the low end of the current scale. The 2434 is also designed to minimise the effects of external stray magnetic fields, increasing the precision of the tester.
Featuring a 0.1mA resolution, the 2434 clamp tester provides accurate current readings. A rotary switch on the device allows easy-one finger power-on and range selection, allowing the user to test efficiently. Standard Kyoritsu features such as the data-hold function and auto-power save are also included.
Features:
- Current measurements up to 100A AC.
- 0.1mA resolution.
- Frequency selector switch to eliminate effect of harmonics.
- Data-hold function.
- Auto power save.
- Minimises the effects of stray magnetic fields.
- Rotary switch for easy one finger operation.
Applications:
- Earth fault current measurement
- Electrical safety compliance testing
- Medical device safety testing
- Process loop monitoring
- General AC load monitoring
- Industrial troubleshooting checks

Specifications

- AC A (50/60Hz): 400mA/4/100A +/-2%rdg +/- 4dgt
- AC A (WIDE): 400mA/4/100A +/- 2%rdg +/- 4dgt [50/60Hz], +/- 3%rdg +/- 5dgt [40 - 400Hz]
- Conductor size: 28mm diameter max.
- Frequency response: 40 - 400Hz
- Effect of external stray magnetic field: 15mm diameter, 100A 20mA AC max.
- Safety Standard: IEC 61010-1, CAT III 300V, IEC 61010-2-032
- Power source: R03 (AAA) (1.5V) x 2
- Dimensions: 169(L) x 75(W) x 40(D)mm
- Weight: 220g approx.
