Kyoritsu | See more Clampmeters & Digital Multimeters

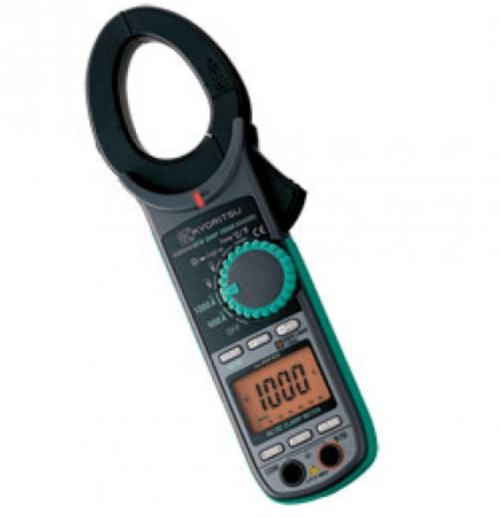

Kyoritsu 2056R 1000A True RMS Digital AC/DC CAT IV Clamp Meter

ORDER ME IN
Product code: 2056R

Order Me In, Once ordered this item will likely dispatch before the 18th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

Designed to meet international safety standard IEC 61010-1 CAT IV 600V, the Kyoritsu 2056R is a digital clamp meter with the capability to read current up to 1000A AC/DC. The 2056R model features the ability to utilise True RMS measurements, providing greater accuracy on non-sinusoidal waveforms.

Read more

$821.81 AUD + GST
 $904.00 AUD Inc. GST
Designed to meet international safety standard IEC 61010-1 CAT IV 600V, the Kyoritsu 2056R is a digital clamp meter with the capability to read current up to 1000A AC/DC. The 2056R model features the ability to utilise True RMS measurements, providing greater accuracy on non-sinusoidal waveforms.
The Kyoritsu 2056R is a CAT IV rated clamp tester, with flexible 40mm jaws. The meter can measure voltage and current in both low and high powered circuits, and has the ability to read up to 1000A AC and 600V AC/DC. This wide range makes the 2056R suitable for use within power distribution, power utilities and maintenance industries.
The Kyoritsu 2056R also features a data hold function and peak hold function, as well as the ability to measure resistance up to 60M. Temperature can be measured using an additional probe (not supplied) and capacitance can be tested. In addition, a max/min function is available to display the maximum and minimum values during a set period of time.
Furthermore, the tester has a non-contact voltage function, warning the user of AC voltage via a red LED indicator. Ergonomically designed, the Kyoritsu 2056R comprises a double moulded construction and features a bar graph display with backlight, for testing in low light conditions.
Features:
- Measures up to 1000A AC.
- True RMS.
- Measures up to 600V AC/DC.
- Capacitance test.
- Designed to meet international safety standard IEC 61010-1 CAT IV 600V.
- 40mm flexible jaw.
- Max/min function.
- Temperature between -50 and +300 C (probe not supplied).
- Measures resistance up to 60M.
- Peak hold function.
- Double moulded construction.
- Auto power off
- Data hold function.
- Bar graph display with backlight.
