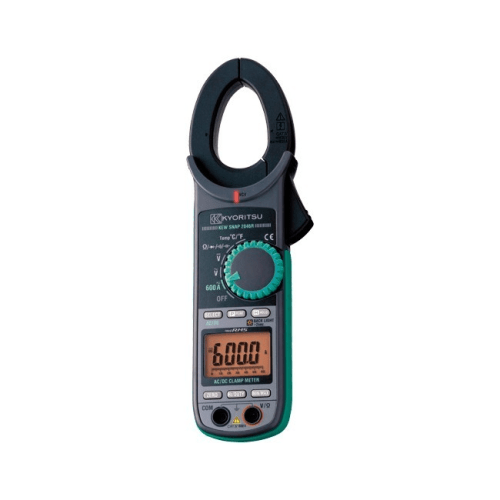

Kyoritsu 2046R True RMS AC/DC Clamp Meter

ORDER ME IN
Product code: 2046R

Backorder Now, once ordered your item will dispatch before the 11th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The Kyoritsu 2046R is a professional digital clamp meter, with the ability to measure both AC and DC current. Featuring True RMS measurement, the 2046R provides accurate current readings even with non-sinusoidal waveforms.

Read more

$680.00 AUD + GST
 $748.00 AUD Inc. GST
The Kyoritsu 2046R is a professional digital clamp meter, with the ability to measure both AC and DC current. Featuring True RMS measurement, the 2046R provides accurate current readings even with non-sinusoidal waveforms.
The Kyoritsu 2046R features a 33mm clamp and can measure up to 600A AC/DC and up to 600V AC/DC. With the ability to measure both voltage and current across low and high powered circuits, the 2046R is a useful tool for power distribution, maintenance and power utility fields.
Designed to meet the international safety standard IEC 61010-1 CAT IV 600V, the Kyoritsu 2046R features a continuity buzzer and a capacitance test. The 2046R includes a MIN/MAX function, which enables to keep the user to easily track the minimum and maximum value during measurement. Furthermore, a non-contact voltage led indicator is present to warn the user of AC voltage.
The Kyoritsu 2046R is ergonomically designed with a double moulded construction. Measurement values are shown on a bar graph display with backlight and auto-power off is integrated as well. The 2046R is supplied with test leads, carry case and instruction manual, with an optional probe available to test temperature.
Features:
- Measures up to 600A AC/DC.
- Measures up to CATIV 600V AC/DC.
- Peak hold function.
- IEC 61010-1 CAT IV 600V.
- True RMS for accuracy across distorted waveforms.
- 33mm flexible jaw.
- Data hold function.
- Non contact voltage warning LED.
- Backlit display with bargraph.

Specifications

- AC A (RMS): 0 - 600.0A, +/- 2.0%rdg5dgt (50/60Hz)/ +/- 3.5%rdg5dgt (40 - 500Hz)
- DC A: 0 - 600.0A, 1.5%rdg5dgt
- AC V: 6/60/600V (Auto Ranging): +/- 1.5%rdg4dgt (50/60Hz), +/- 3.5%rdg5dgt (40 - 400Hz)
- DC V: 600m/6/60/600V (Auto Ranging) +/- 1.0%rdg3dgt
- Resistance: 600/6k/60k/600k/6M/60M (Auto Ranging) +/- 1%rdg5dgt (600 - 6M) / 5%rdg8dgt (60M)
- Continuity buzzer: Buzzer Sounds at 100
- Capacitance test: 400n/4/40F(Auto Ranging)
- Temperature: -50C - +300C (With the use of Temperature probe 8216)
- Frequency/DUTY: 10/100/1k/10kHz (Auto Ranging) / 0.1 - 99.9%
- Conductor size: 33mm
- Safety Standard: IEC 61010-1 CAT IV 600V, IEC 61010-031, IEC 61010-2-032, IEC 61326
- Power source: R03 (1.5V) (AAA) x 2
- Dimensions: 243(L) x 77(W) x 36(D) mm
- Weight: 300g
