Kyoritsu 2033 Miniature AC/DC Clamp Meter

ORDER ME IN
Product code: 2033

Backorder Now, once ordered your item will dispatch before the 09th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The Kyoritsu 2033 is a compact AC/DC digital clamp meter, capable of measuring currents up to 300A. Featuring autoranging, the Kyrotisu 2033 allows for currents to be measured at a...

Read more

$940.00 AUD + GST
 $1,034.00 AUD Inc. GST

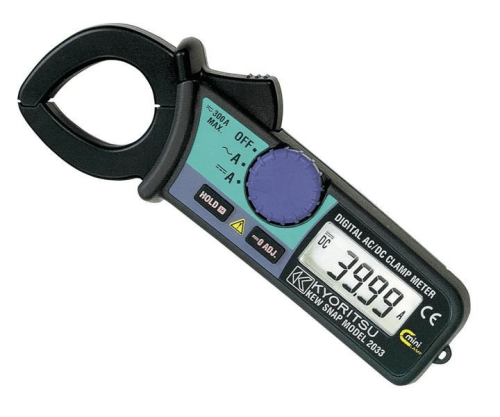

The Kyoritsu 2033 is a compact AC/DC digital clamp meter, capable of measuring currents up to 300A. Featuring autoranging, the Kyrotisu 2033 allows for currents to be measured at a resolution of 0.01A AC and DC using its 24mm clamp.
An auto zero function for one touch zero adjustment and a data hold function are also present on the 2033 model. Small and lightweight, the Kyoritsu 2033 is an easy to use clamp meter, perfect for quick current measurements. The Kyoritsu 2033 is supplied with a carry case, batteries and instruction manual.
Features:
- 24mm diameter clamp.
- Measures current up to 300A.
- Resolution of 0.01A AC and DC.
- Data hold function.
- Auto zero function for one touch zero adjustment.
- Compact and lightweight.

Specifications

- AC A: 40/300A +/- 1%rdg +/- 4dgt [50/60Hz] (0 - 40A), +/- 2.5%rdg +/- 4dgt [20Hz - 1kHz] (0 - 40A) +/- 1.5%rdg4dgt [50/60Hz] (20 - 200A), +/- 2.5%rdg4dgt [20Hz - 1kHz] (20 - 200A) +/- 3.5%rdg [50/60Hz] (200 - 300A) +/- 4%rdg [20Hz - 1kHz] (200 - 300A)
- DC A: 40/300A +/- 1%rdg4dgt (0 - +/- 40A) +/- 1.5%rdg4dgt (+/- 20 - +/- 200A) +/- 3%rdg (+/- 200 - +/- 300A)
- Conductor size: 24mm diameter max.
- Frequency response: DC, 20Hz - 1kHz
- Safety Standard: IEC 61010-1 CAT III 300V, IEC 61010-2-032
- Power source: LR-44 (1.5V) x 2
- Dimensions: 147(L) x 59(W) x 25(D)mm
- Weight: 100g approx.
