Kyoritsu 2012RA Multimeter with True RMS and AC/DC Clamp Sensor
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 31st of July 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
The Kyoritsu 2012R is a digital multimeter, incorporating the ability to read both voltage and current, via true RMS measurements.
Regular price
$490.00 AUD
+ GST
$539.00 AUD Inc. GST
$539.00 AUD Inc. GST

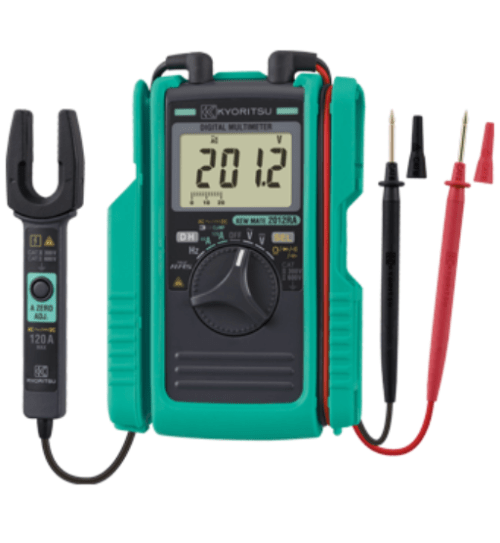

The Kyoritsu 2012RA is a digital multimeter, featuring true RMS, can measure both voltage and current. Compact and easy to use, the 2012RA model is a traditional style multimeter is supplied with an 12mm AC/DC clamp sensor.
The Kyoritsu 2012RA can measure AC and DC voltage up to 600V, as well as resistance up to 60 milliohms. Currents, both AC and DC, can also be measured up to 120A, in which the true RMS function can be applied to achieve greater accuracy across non-sinusoidal waveforms. Measured values can be held using the data-hold function.
The 2012RA model features an auto-power save function, the ability to perform a diode test, as well as measuring capacitance up to 40uF. A continuity buzzer, which provides an audible warning below 35 ohms, is also present on the meter. The Kyoritsu 2012RA includes an AC/DC clamp sensor, batteries and instruction manual.
Features:
- True RMS measurements.
- AC and DC voltage up to 600V.
- AC and DC current up to 120A.
- Resistance up to 60M.
- Continuity test buzzer (warns below 35 ohms).
- Capacitance up to 40uF.
- Diode test function.
- Auto-power save.
Specifications
- DC V: 600.0mV/6.000/60.00/600.0V (Input impedance: approx. 10 milliohms) +/- 1.0%rdg +/- 3dgt
- AC V: 6.000/60.00/600.0V (Input impedance: approx.10 milliohms) +/- 1.5%rdg +/- 5dgt (45 - 400Hz)
- DC A: 60.00/120.0A +/- 2.0%rdg +/- 8dgt (60A) +/- 2.0%rdg +/- 5dgt (120A)
- AC A: 60.00/120.0A +/- 2.0%rdg +/- 5dgt (45 - 65Hz)
- Resistance: 600.0 ohms/6.000/60.00/600.0 kiloohms/6.000/60.00 milliohms +/- 1.0%rdg +/- 5dgt (600 ohms/6/60/600 kiloohms) +/- 2.0%rdg +/- 5dgt (6 milliohms) +/- 3.0%rdg +/- 5dgt (60 milliohms)
- Continuity buzzer: Buzzer sounds below 35 +/- 25 ohms
- Diode test: 2.000V +/- 3.0%rdg +/- 5dgt Open-loop voltage: approx. 2.7V
- Capacitance: 400.0nF/4.000/40.00uF +/- 2.5%rdg +/- 10dgt
- Frequency (AC A): 99.99/400.0Hz +/- 0.2%rdg +/- 2dgt (100Hz) +/- 0.1%rdg +/- 1dgt (400Hz)
- Frequency (AC V): 99.99/999.9Hz/9.999/99.99/300.0kHz +/- 0.2%rdg +/- 2dgt (100Hz) +/- 0.1%rdg +/- 1dgt (1000Hz/10/100/300.0kHz). (Input sensitivity Current: more than 6A Voltage: more than 6V [- 10kHz]/more than 20V [10k - 300kHz])
- Conductor size: 12mm diameter max.
- Applicable standards: IEC 61010-1 CAT III 300V, CAT II 600V Pollution degree 2, IEC 61010-031, IEC 61010-2-032, IEC 61326-1, EN 50581(RoHS)
- Power source: R03 (AAA)(1.5V) x 2 * Continuous measuring time: DCV: approx. 150hours, ACA: approx. 25hours (Auto power save: approx. 15 minutes)
- Dimensions: 128 (L) x 92 (W) x 27 (D) mm
- Weight: 220g approx. (including batteries)
