KYORITSU 2002PA AC Digital Clamp Meter | 2000A

ORDER ME IN
Product code: 2002PA

Order Me In, Once ordered this item will likely dispatch before the 04th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

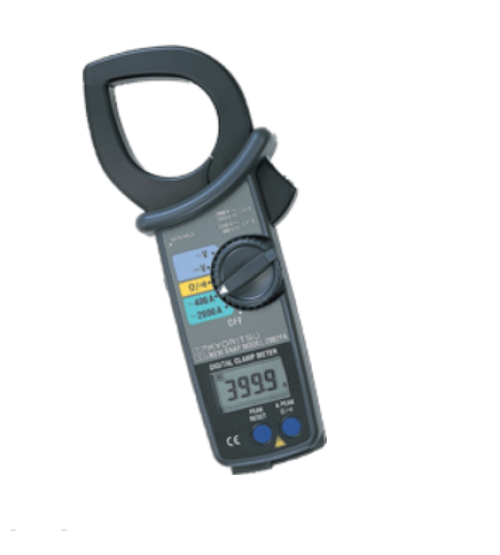

The KYORITSU 2002PA AC Digital Clamp Meter features tear-drop shaped jaws for ease of use in tight cable areas. and provides a wide measuring range of up to 2000A AC. It has a millivolt output function for longer term measurement or datalogging of current and a wide frequency measurement range of 40Hz to 1kHz.

Read more

$940.90 AUD + GST
 $1,035.00 AUD Inc. GST
Features:
- Can measure large AC current up to 2000A.
- 55mm-dia large tear drop shaped jaws.
- Terminal cover to avoid the use of incorrect terminal
- Peak hold function, Data Hold Function, Sleep Function
- Provides a dynamic range of 4000 counts full scale
- Wide frequency range from 40Hz to 1kHz
- Output terminal for long term current monitoring
- Safety design throughout confirming to the following provisions of IEC61010.

Specifications

- AC A: 400A (0 to 400A) +/- 1%rdg +/- 3dgt [50/60Hz], +/- 2%rdg +/- 3dgt [40Hz - 1kHz]. 2000A (0 - 1500A) +/- 1%rdg +/- 3dgt [50/60Hz], +/- 3%rdg +/- 3dgt [40Hz - 1kHz]. 2000A (1500 - 2000A) +/- 3.0%rdg [50/60Hz]
- AC V: 40/400/750V +/- 1%rdg +/- 2dgt [50/60Hz] +/- 1.5%rdg +/- 3dgt [40Hz - 1kHz]
- DC V: 40/400/1000V +/- 1%rdg +/- 2dgt
- Resistance: 400 ohms/4k/40k/400 kiloohms +/- 1.5%rdg +/- 2dgt
- Continuity buzzer: buzzer sounds below 50 +/- 35 ohms
- Conductor size: 55mm diameter max.
- Frequency response: 40Hz - 1kHz
- Output Recorder: DC400mV against AC400A and DC200mV against AC2000A
- Safety Standard: IEC 61010-1 CAT III 600V, CAT II 1000V, IEC 61010-2-031, IEC 61010-2-032
- Power source: R6 (AA) (1.5V) x 2
- Dimensions: 247(L) x 105(W) x 49(D)mm
- Weight: 470g approx.
