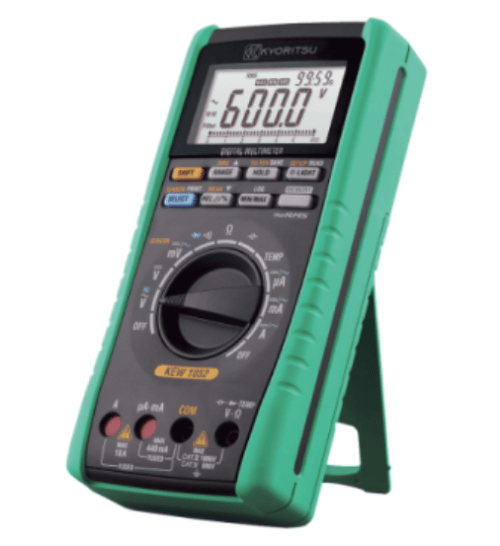

Kyoritsu 1052 CAT IV Digital Multimeter with True RMS and Logging
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 13th of August 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
The Kyoritsu 1052 is a high performance, high accuracy CAT IV digital multimeter with True RMS. Featuring a large backlit LCD display, the 1052 is capable of measuring and logging...
Regular price
$1,173.63 AUD
+ GST
$1,291.00 AUD Inc. GST
$1,291.00 AUD Inc. GST
The Kyoritsu 1052 is a high performance, high accuracy CAT IV digital multimeter with True RMS. Featuring a large backlit LCD display, the 1052 is capable of measuring and logging a variety of different parameters including AC and DC voltage, AC and DC current, temperature and capacitance.
The Kyoritsu 1052 boasts a 0.09% basic DC accuracy as well as the ability to provide True RMS Measurements as well as a MEAN value detection mode. DC and AC voltage (RMS) can measured up to 1000V and DC and AC current (RMS) can be measured up to 10A. Compliant with IEC 61010-1 CAT IV 600V, CAT III 1000V, the 1052 model features a user calibration function as well as a terminal shutter to prevent incorrect test leads' insertion in current terminals.
With the ability to measure capacitance up to 1000uF, the Kyoritsu 1052 model can also measure frequencies up to 99.99kHz and temperature between -50 and 600 C (with K-type probes). Via a USB interface (Option for USB Communication set), the 1052 provides the ability to download data and perform live monitoring on a PC. The 1052 model additionally includes a continuity buzzer, a diode test and ranging functions such as Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H), and Zero Adjustment (for Capacitor, Resistance).
The Kyoritsu 1052 comes supplied with test leads, batteries, 2 x replacement fuses and an instruction manual.
Features:
- 0.09% basic DC accuracy
- Large display with 6,000 counts
- Large data internal memory 1,600 data (logging), 100 data (manual)
- Download data (up to 32, 767 data) and Live Monitoring on a PC via the USB interface (Option for - USB Communication set)
- True-RMS Measurements
- True-RMS or MEAN value detection mode can be selected
- Low-pass filter for motor drive measurements
- User calibration function
- Complies with IEC 61010-1 CAT IV 600V , CAT III 1000V
- Terminal shutter to prevent incorrect test leads' insertion in current terminals
- Very wide operating temperature range from -10 to 55 C
Specifications
- DC V: 600.0mV / 6.000 / 60.00 / 600.0 / 1000V (Input impedance: 10 milliohms [600mV / 60 / 600 / 1000V], 11 milliohms [6V]) +/- 0.09%rdg +/- 2dgt (Basic accuracy)
- AC V [RMS]: 600.0mV / 6.000 / 60.00 / 600.0 / 1000V (Input impedance: 10 milliohms <200pF [600mV], 11 milliohms <50pF [6V], 10 milliohms <50pF [60/600/1000V]) +/- 0.5%rdg +/- 5dgt (Basic accuracy)
- DC A: 600.0 / 6000uA / 60.00 / 440.0mA / 6.000 / 10.00A +/- 0.2%rdg +/- 2dgt (Basic accuracy)
- AC A [RMS]: 600.0 / 6000uA / 60.00 / 440.0mA / 6.000 / 10.00A +/- 0.75%rdg +/- 5dgt (Basic accuracy)
- Resistance: 600.0 ohms / 6.000 / 60.00 / 600.0 kiloohms/ 6.000 / 60.00 milliohms +/- 0.4%rdg +/- 1dgt (Basic accuracy)
- Continuity buzzer: 600.0 ohms (The buzzer turns on for resistances lower than 50 +/- 30 ohms)
- Diode test: 2.000V +/- 1%rdg +/- 2dgt
- Open circuit voltage: <3.5V (Approx. 0.5mA Measuring Current)
- Capacitance: 10.00 / 100.0nF / 1.000 / 10.00 / 100.0 / 1000uF +/- 2%rdg +/- 5dgt (Basic accuracy)
- Frequency: 10.00 to 99.99/90.0 to 999.9Hz/0.900 to 9.999/9.00 to 99.99kHz +/- 0.02%rdg +/- 1dgt (Basic accuracy)
- Temperature: -50 to 600 C +/- 2%rdg +/- 2 C (with the use of K-type Temperature probe)
- Other functions: Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H), Zero Adjustment (Capacitor, Resistance), LCD backlight
- Applicable standards: IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution degree 2, IEC 61010-031, IEC 61326-1 (EMC)
- Display: 6,000 counts
- Power source: R6 (1.5V) x 4 (Auto power off: approx. 20 minutes)
- Dimensions: 192(L) x 90(W) x 49(D) mm
- Weight: Approx. 560g (including batteries)
