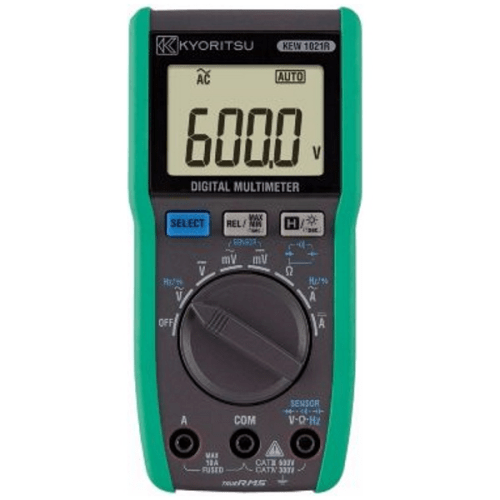

KYORITSU 1021R Digital Multimeter

ORDER ME IN
Product code: 1021R

Order Me In, once ordered this item will likely dispatch before the 06th of August 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The Kyoritsu 1021R is a True RMS multimeter for measurement on all types of signals. The instrument has an ergonomic design and automatic range selection, min / max / relative measurement, illuminated display, and data slots.

The Kyoritsu 1021R measures True RMS voltage, current, frequency, resistance, capacitance, duty cycle, diodes test.

Read more | Need help? 3 Hour Business Reply

$306.36 AUD + GST
 $337.00 AUD Inc. GST
Features:
- Elegant and easy-to-use cabinet
- Large display with 6000 counts and Backlight
- Enhanced current measuring function using an external clamp sensor
- Two detachable holders, flat and wing type
- Accurate reading with True RMS
- Safety Standard IEC 61010-1 CAT IV 300V / CAT III 600V

Specifications

- DC V: 6.000 / 60.00 / 600.0V (auto range) +/- 0.5%rdg +/- 3dgt
- DC mV: 600.0mV +/- 1.5%rdg +/- 3dgt
- DC Clamp Sensor: 60.00 / 200.0A (auto range) +/- 1.5%rdg +/- 3dgt + Sensor accuracy
- AC V: 6.000 / 60.00 / 600.0V (auto range) +/- 1.0%rdg +/- 3dgt [40 to 500Hz]
- AC mV: 600.0mV +/- 2.0%rdg +/- 3dgt [40 to 500Hz]
- AC Clamp Sensor: 60.00 / 200.0A (auto range) +/- 2.0%rdg +/- 3dgt + Sensor accuracy [40 to 500Hz]
- DC A: 6.000 / 10.00A (auto range) +/- 1.5%rdg +/- 3dgt
- AC A: 6.000/10.00A (auto range) +/- 1.5%rdg +/- 3dgt[45 to 500Hz]
- Resistance: 600.0 ohms /6.000 / 60.00 / 600.0 kiloohms /6.000 / 40.00 milliohms (auto range)
+/- 0.5%rdg +/- 4dgt (600 ohms), +/- 0.5%rdg +/- 2dgt (6 / 60 / 600 kiloohms / 6 milliohms) +/- 1.5%rdg +/- 3dgt (40 milliohms)
- Continuity buzzer: 600 ohms (Buzzer sounds below 90 ohms)
- Diode test: Open-loop voltage: < 3.0V
- Capacitance: 60.00 / 600.0nF/ 6.000 /60.00 / 600.0 / 1000uF +/- 2.0%rdg +/- 5dgt (60 / 600nF)
+/- 5.0%rdg +/- 5dgt (6 / 60 / 600 / 1000 F)
- Frequency ACV: 99.99 / 999.9Hz / 9.999 / 99.99kHz +/- 0.1%rdg +/- 3dgt
- ACA: 99.99 / 999.9Hz/ 9.999kHz +/- 0.1%rdg +/- 3dgt
- DUTY: 10.0 to 90.0% +/-1.0%rdg +/- 3dgt [50 / 60Hz]
- Applicable standards: IEC 61010-1 CAT IV 300V / CAT III 600V / CAT II 1000V; IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2 (EMC), EN 50581 (RoHS)
- Power source: R03 (1.5V) x 2
- Dimensions: 155(L) x 75(W) x 40(D)mm
- Weight: 250g Approx. (including batteries)
Included Accessories:
- Wing-type holder, Flat-type holder, 7066A (Test leads),
- 8919 (Ceramic fuse [10A/600V]) x 1 (included),
- 9097 (Carrying case), R03 x 2, Instruction manual
