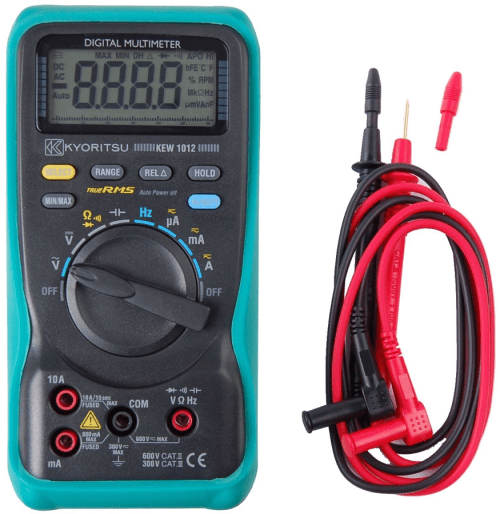

Kyoritsu 1012 Multimeter with True RMS

ORDER ME IN
Product code: 1012

Backorder Now, once ordered your item will dispatch before the 31st of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

Features: - True RMS can measure and indicate distorted waveforms - 6040 counts with Bar Graph display - MIN/MAX function enables to record min & max value - REL(relative value)...

Read more

$349.70 AUD + GST
 $384.67 AUD Inc. GST
Features:
- True RMS can measure and indicate distorted waveforms
- 6040 counts with Bar Graph display
- MIN/MAX function enables to record min & max value
- REL(relative value) function to indicate the measurement variation

Specifications

- DC V: 600.0mV / 6.000 / 60.00 / 600.0 / 600V (Input Impedance: 10 milliohms, 100 milliohms only 600 mV) +/- 0.5% +/- 2dgt (600.0mV / 6.000 / 60.00 / 600.0V) +/- 0.8% +/- 3dgt (600V)
- AC V: 6.000 / 60.00 / 600.0 / 600V (Input Impedance: 10 milliohms) +/- 1.0% +/- 3dgt (6.000 / 60.00 / 600.0V) +/-1.5% +/- 3dgt (600V)
- DC A: 600 / 6000A / 60 / 600mA / 6 / 10A +/- 1.2% +/- 3dgt (600 / 6000A / 60 / 600mA) +/- 2.0% +/- 5dgt (6/10A)
- AC A: 600 / 6000uA / 60 / 600 mA / 6 / 10A +/-1.5% +/- 4dgt (600 / 6000 uA / 60 / 600mA) +/- 2.2% +/- 5dgt (6/10A)
- Resistance: 600 ohms / 6 / 60 / 600 kiloohms / 6 / 60 milliohms +/-1.0% +/- 2dgt (600 ohms / 6 / 60 / 600 kiloohms / 6 milliohms) +/-2.0% +/- 3dgt (60 milliohms)
- Continuity buzzer: 0 to 600 ohms (Buzzer sounds below 100 ohms)
- Diode test: 2.8V Release Voltage: Approx. 0.4mA Test Current
- Capacitance: 40 / 400nF / 4 / 40 / 400 / 4000uF
- Frequency: 10 / 100 / 1000Hz / 10 / 100 / 1000kHz / 10MHz
- DUTY: 0.1 to 99.9% (Pulse width/Pulse period) +/- 2.0% +/- 2dgt (- 10kHz)
- Applicable standards: IEC 61010-1 CAT III 300V Pollution degree 2, IEC 61010-1 CAT II 600V Pollution degree 2, IEC 61010-031, IEC 61326
- Display: 6040 Counts
- Power source: R6 (1.5V) x 2 (Auto-power-OFF within 15 minutes)
- Dimensions: 161(L) x 82(W) x 50(D)mm
- Weight: Approx. 280g
Included Accessories:
- 7066A (Test leads)
- 8216 (K-type Temperature probe)
- 0.8A/600V (Ceramic Fuse) x 1 built-in
- 10A/600V (Ceramic Fuse) x 1 built-in
- R6 x 2
- Instruction Manual
