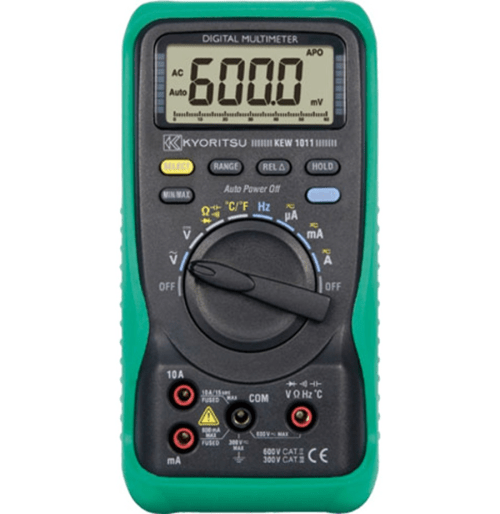

Kyoritsu 1011 Multimeter with Temperature
Backorder Now, once ordered your item will dispatch before the 31st of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The Kyoritsu 1011 is a digital multimeter, incorporating the ability to measure both voltage and current, as well as temperature. The 1011 model is compact and easy to use, making...
Regular price
$249.30 AUD
+ GST
$274.23 AUD Inc. GST
$274.23 AUD Inc. GST
The Kyoritsu 1011 is a digital multimeter, incorporating the ability to measure both voltage and current, as well as temperature. The 1011 model is compact and easy to use, making it a perfect addition to any toolbox. It can measure AC and DC voltage up to 600V, as well as resistance up to 60M. Currents, both AC and DC, can also be measured up to 10A and the meter can facilitate a diode test. Measured values can be held using the data-hold function and a max/min function enables the maximum and minimum value to be recorded.
The 1011 multimeter is capable of testing temperature, between -50 C and 300 C, with the supplied K-type probe. The temperature function is unit selectable, and can provide the measured value in either C or F. Capacitance up to 4000uF can also be tested and a continuity buzzer, which provides an audible warning below 100 ohms, is also present on the meter.
THe Kyoritsu 1011 features a 6040 count digital display, with bar graph, and includes test leads, K-type temperature probe, batteries, replacement fuses and an instruction manual.
Features:
- AC and DC voltage up to 600V.
- AC and DC current up to 10A.
- Temperature measurement, selectable for C and F.
- Resistance up to 60M.
- 6040 count digital display.
- Auto range and manual range selector (with range hold feature).
- Continuity test buzzer (warns below 100).
- Capacitance up to 4000F.
- Diode test function.
- Auto-power off.
Specifications
- DC V: 600.0mV / 6.000 / 60.00 / 600.0 / 600V (Input Impedance: 10 milliohms, 100 milliohms only 600 mV) +/- 0.5% +/- 2dgt (600.0mV / 6.000 / 60.00 / 600.0V) +/- 0.8% +/- 3dgt (600V)
- AC V: 6.000 / 60.00 / 600.0 / 600V (Input Impedance: 10 milliohms) +/- 1.0% +/- 3dgt (6.000 / 60.00 / 600.0V) +/-1.5% +/- 3dgt (600V)
- DC A: 600 / 6000A / 60 / 600mA / 6 / 10A +/- 1.2% +/- 3dgt (600 / 6000A / 60 / 600mA) +/- 2.0% +/- 5dgt (6/10A)
- AC A: 600 / 6000uA / 60 / 600 mA / 6 / 10A +/-1.5% +/- 4dgt (600 / 6000 uA / 60 / 600mA) +/- 2.2% +/- 5dgt (6/10A)
- Resistance: 600 ohms / 6 / 60 / 600 kiloohms / 6 / 60 milliohms +/-1.0% +/- 2dgt (600 ohms / 6 / 60 / 600 kiloohms / 6 milliohms) +/-2.0% +/- 3dgt (60 milliohms)
- Continuity buzzer: 0 to 600 ohms (Buzzer sounds below 100 ohms)
- AC V: 6.000 / 60.00 / 600.0 / 600V (Input Impedance: 10 milliohms) +/- 1.0% +/- 3dgt (6.000 / 60.00 / 600.0V) +/-1.5% +/- 3dgt (600V)
- DC A: 600 / 6000A / 60 / 600mA / 6 / 10A +/- 1.2% +/- 3dgt (600 / 6000A / 60 / 600mA) +/- 2.0% +/- 5dgt (6/10A)
- AC A: 600 / 6000uA / 60 / 600 mA / 6 / 10A +/-1.5% +/- 4dgt (600 / 6000 uA / 60 / 600mA) +/- 2.2% +/- 5dgt (6/10A)
- Resistance: 600 ohms / 6 / 60 / 600 kiloohms / 6 / 60 milliohms +/-1.0% +/- 2dgt (600 ohms / 6 / 60 / 600 kiloohms / 6 milliohms) +/-2.0% +/- 3dgt (60 milliohms)
- Continuity buzzer: 0 to 600 ohms (Buzzer sounds below 100 ohms)
- Diode test: 2.8V Release Voltage: Approx. 0.4mA Test Current
- Capacitance: 40 / 400nF / 4 / 40 / 400 / 4000uF
- Frequency: 10 / 100 / 1000Hz / 10 / 100 / 1000kHz / 10MHz
- DUTY: 0.1 to 99.9% (Pulse width/Pulse period) +/- 2.0% +/- 2dgt (- 10kHz)
- Temperature: -50 to 300 C (with the use of Temperature probe 8216). Note: KEW 1011 can measure max. 700 C. In order to measure over 300 C, please use a K-type temperature probe available in the market.
- Applicable standards: IEC 61010-1 CAT III 300V Pollution degree 2, IEC 61010-1 CAT II 600V Pollution degree 2, IEC 61010-031, IEC 61326
- Display: 6040 Counts
- Power source: R6 (1.5V) x 2 (Auto-power-OFF within 15 minutes)
- Dimensions: 161(L) x 82(W) x 50(D)mm
- Weight: Approx. 280g
Included Accessories:
- 7066A (Test leads)
- 8216 (K-type Temperature probe)
- 0.8A/600V (Ceramic Fuse) x 1 built-in
- 10A/600V (Ceramic Fuse) x 1 built-in
- R6 x 2
- Instruction Manual
- Instruction Manual
