Field Piece | See more Data Loggers | See more Wireless Data Loggers

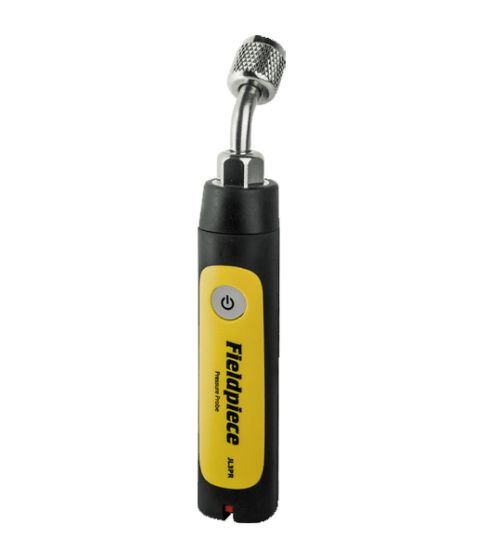

JL3PR Job Link Bluetooth Pressure Probe

ORDER ME IN
Product code: JL3PR

Order Me In, once ordered this item will likely dispatch before the 06th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

Bluetooth pressure probe with a wireless range of 107 meters line of sight.

-Measurement range: 29” HgV to 580 psig/74 cmHgV to 4000 kPa

-45° angled 1/4" SAE Female Swivel fitting that easily connects in tight spaces.

-Powerful enough to go through most walk-in coolers and freezers.

Read more | Need help? 3 Hour Business Reply

$209.60 AUD + GST
 $230.56 AUD Inc. GST
Bluetooth pressure probe with a wireless range of 107 meters line of sight. With functional datalogging features through the Job Link App.
Features:
- Wireless Range: 107 meters line of sight
- Powerful enough to go through most walk-in coolers and freezers
- 45 angled 1/4" SAE Female Swivel fitting easily connects in tight spaces
- Pressure sensors are accurate at any elevation
- Calibrates automatically when powered on
- Directly transmits to your mobile device
- IP55 rated
Job Link App
Simply connect your probe to the Job Link App & follow the update procedure. Log multiple parameters at one time to get the right analysis of your system.
To obtain a Superheat or Sub-Cool Log, add the refrigerant in the field provided after downloading your data from the JL3PR pressure Probe. The Saturation Temperatures will show for your readings.
Meld the table cells from your JL3PC Pipe Clamp Probe Log, either Suction or Liquid line & your superheat or subcooling values will be presented.
Use the JL3PC to test your delta T. across the filter drier. Temperature differences over 1.0 degrees C need to be monitored for loss of system efficiency.

Specifications

Job Link Pressure Probe - JL3PR:
- Connector Type: 45 Standard 1/4 NPT female flare
- Best Accuracy: 1 psig (7 kPa)
- Measurement Range: 0 to 580 psig (0 to 4000 kPa)
- Maximum Overload: 800 psig (5500 kPa)
- Water Resistant: Designed to IP55
Wireless:
- Wireless Range: +100 metres
- Wireless Frequency: 2.4 GHz
- Battery: 2 x AAA (included)
- Battery Life: 150 hrs typical alkaline
- Auto Power Off (APO): 2 hrs (can be disabled)
- Minimum Device Requirement: BLE 4.0 devices running iOS 7.0 or AndroidTM 5.0
