Field Piece | See more Environment Meters

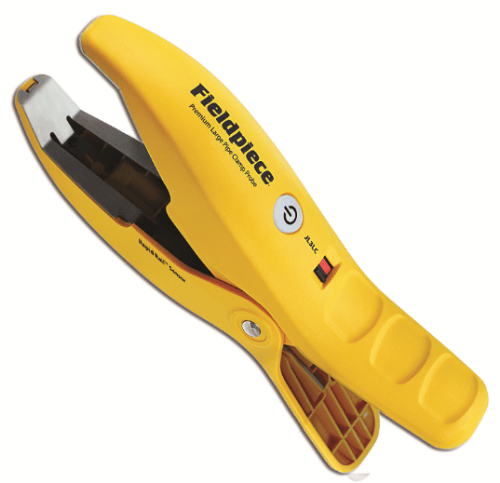

JL3LC Job link Large Pipe Clamp Temperature Probe - 105mm Jaw Opening

ORDER ME IN
Product code: JL3LC

Order Me In, once ordered this item will likely dispatch before the 17th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

Bluetooth pipe clamp temperature probe with 105mm jaw opening. Wireless range of 107 meters line of sight.

-Measurement range: -46°C to 125°C, ±0.6°C.

-Pipe Size Compatibility: 3/4" to 4 1/8" (19.05mm to 104.78mm) OD

-Waterproof, rugged, and built to withstand the rigors of field use.

Read more | Need help? 3 Hour Business Reply

$239.50 AUD + GST
 $263.45 AUD Inc. GST
With the ability to measure pipes up to 4 1/8", our new wireless pipe clamp is large and in charge; a perfect match for any commercial or refrigeration HVAC-R Technician in search of lightning-fast precision readings without the inconvenience of straps, tape or zip ties.
Our patented Rapid Rail Sensor Technology uses electrically conductive pipe to complete the circuit so readings stabilize immediately, unlike the other guys that can take several minutes.
Plus, measurements are not affected by ambient air, wind, or moisture on the pipe surface culprits known to throw readings off by as much as 3-4 degrees.
Features:
- Pipe Contact Surface Compatibility: Electrically conductive
- Pipe Size Compatibility: 3/4" to 4 1/8" (19.05mm to 104.78mm) OD
- Rapid Rail Sensor Technology thermocouple (nickel chromium / nickel aluminum)
- Measurement Range: -46C to 125C
- Stabilizes in 3 seconds
Job Link App
Simply connect your probe to the Job Link App & follow the update procedure. Log multiple parameters at one time to get the right analysis of your system.
To obtain a Superheat or Sub-Cool Log, add the refrigerant in the field provided after downloading your data from the JL3PR pressure probe. The Saturation Temperatures will show for your readings.
Meld the table cells from your JL3LC Pipe Clamp Probe Log... either Suction or Liquid line & your superheat or subcooling values will be presented.
Use the JL3LC to test your delta T. across the filter drier.... Temperature differences over 1.0 degrees C need to be monitored for loss of system efficiency.

Specifications

Job Link Premium Pipe Clamp Probe - JL3PC:
- Pipe Compatibility: Electrically conductive 1/4 to 1 3/8 (6.4mm to 34.9mm) dia.
- Accuracy: 1F (0.6C)
- Measurement Range: -50F to 257F (-46C to 125C)
- Stabilization Time: 3 seconds typical
- Measurement Feedback: Beeper and LED
- Water Resistant: Designed to IP55
Wireless:
- Wireless Range: +100 metres
- Wireless Frequency: 2.4 GHz
- Battery: 2 x AAA (included)
- Battery Life: 150 hrs typical alkaline
- Auto Power Off (APO): 2 hrs (can be disabled)
- Minimum Device Requirement: BLE 4.0 devices running iOS 7.0 or AndroidTM 5.0
