JL3KR4 Job Link Charge Test Bluetooth Probe Kit

ORDER ME IN
Product code: JL3KR4

Backorder Now, once ordered your item will dispatch before the 04th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

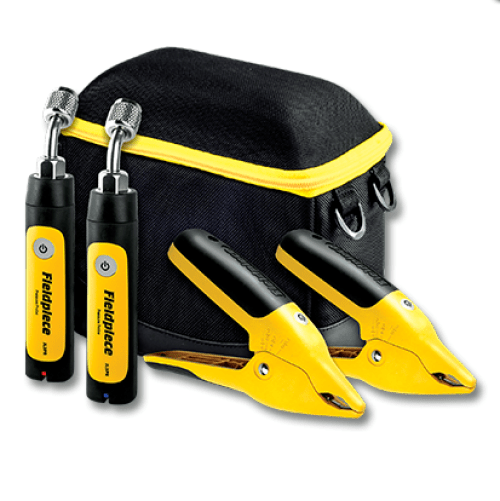

Bluetooth refrigerant charge test kit. Range of 100 meters and comes in a padded case. Includes:

-2x Pressure Probes for Discharge & Suction Pressure.

-2x Pipe clamps for liquid line subcooling & suction line Superheat.

Read more

$729.10 AUD + GST
 $802.01 AUD Inc. GST
Bluetooth refrigerant charge test kit. Range of 100 meters and comes in a padded case. Use it for checking Superheat, Sub-Cooling, System pressures & pipe temps.
This kit consists of:
- 2x Pressure Probes for Discharge & Suction Pressure
- 2x Pipe clamps for liquid line subcooling & suction line Superheat
- Contained in a quick access padded case.
- All measurements can be sent up to +100 meters away directly to your mobile device with the Job Link app.
Job Link App
Simply connect your probe to the Job Link App & follow the update procedure. Log multiple parameters at one time to get the right analysis of your system.
To obtain a Superheat or Sub-Cool Log, add the refrigerant in the field provided after downloading your data from the JL3PR pressure Probe. The Saturation Temperatures will show for your readings.
Meld the table cells from your JL3PC Pipe Clamp Probe Log... either Suction or Liquid line & your superheat or subcooling values will be presented.

Specifications

Job Link Pressure Probe - JL3PR:
- Connector Type: 45 Standard 1/4 NPT female flare
- Best Accuracy: 1 psig (7 kPa)
- Measurement Range: 0 to 580 psig (0 to 4000 kPa)
- Maximum Overload: 800 psig (5500 kPa)
- Water Resistant: Designed to IP55
Job Link Premium Pipe Clamp Probe - JL3PC:
- Pipe Compatibility: Electrically conductive 1/4 to 1 3/8 (6.4mm to 34.9mm) dia.
- Accuracy: 1F (0.6C)
- Measurement Range: -50F to 257F (-46C to 125C)
- Stabilization Time: 3 seconds typical
- Measurement Feedback: Beeper and LED
- Water Resistant: Designed to IP55
Wireless:
- Wireless Range: +100 meters
- Wireless Frequency: 2.4 GHz
- Battery: 2x AAA (included)
- Battery Life: 150 hrs typical alkaline
- Auto Power Off (APO): 2 hrs (can be disabled)
- Minimum Device Requirement: BLE 4.0 devices running iOS 7.0 or AndroidTM 5.0
