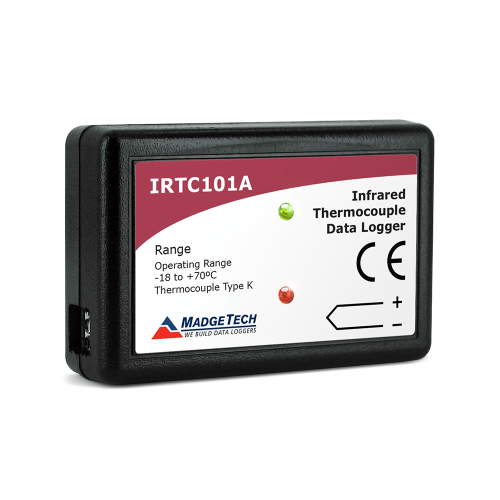

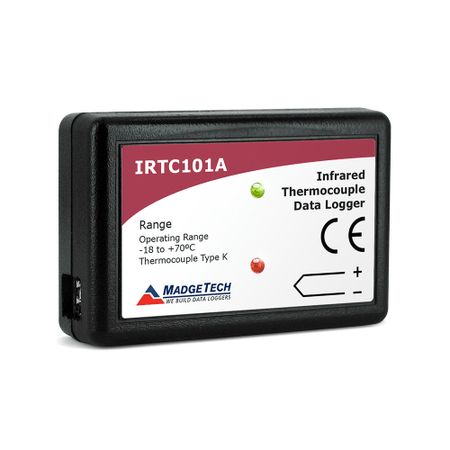

Infrared Thermocouple Temperature Data Logger - IRTC101A
Backorder Now, once ordered your item will dispatch before the 23rd of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$1,604.90 AUD Inc. GST
The IRTC101A features a 10 year battery life, 1 second reading rate, a multiple start/stop function, ultra-high speed download capability, 500,000 reading storage capacity, optional memory wrap, battery life indicator, optional password protection, programmable high-low alarms and more.
As the leader in low power data logger technology, MadgeTech continuously improves its products and develops solutions to meet ever-changing challenges. The IRTC101A was designed with our customers in mind. MadgeTech offers free firmware upgrades for the life of the product so that data loggers already deployed in the field can grow with new technological developments. Units do not need to be returned to the factory for upgrades. The user can do this from any PC.
Specifications
Temperature
Internal Channel Temperature Sensor |
Semiconductor |
|---|---|
Internal Channel Temperature Range |
-40C to +80C (-40F to +176F) |
Internal Channel Temperature Resolution |
0.1C (0.018F) |
Internal Channel Temperature Calibrated Accuracy |
0.25C (0.45F) |
Remote Channel Temperature Sensor |
Thermocouple Type K (call for additional) |
Remote Channel Temperature Range |
(Contact MadgeTech for Information) |
Remote Channel Temperature Resolution |
(Contact MadgeTech for Information) |
Remote Channel Temperature Calibrated Accuracy |
(Contact MadgeTech for Information) |
General
Memory |
500,000 readings; software configurable memory wrap 250,000 readings in multiple start/stop mode |
|---|---|
Reading Rate |
1 reading every second to 1 every 24 hours |
Baud Rate |
115,200 |
Cold Junction Compensation |
Automatic |
Channels |
1 Internal & 1 Remote |
LED Indicators |
Red & Green |
Battery Life |
10 years typical at a 15 minute reading rate |
Material |
ABS plastic |
Dimensions |
1.4" x 2.2" x 0.6 (36mm x 56mm x 16mm) |
Operating Environment |
-18~+70C, 0~95%RH non-condensing |
Required Interface Package |
IFC200 |
