IQCPK Flooring Installation Quick Check Plus Kit
Order Me In, Once ordered this item will likely dispatch before the 10th of February 2026, call 1300 737 871 (NZ 0800 737 871) to confirm.
The Tramex IQCPK is a compact kit for conducting the Installation Quick Check test, which is the instant, non-destructive, quantitative moisture content testing of concrete floors and ambient dew-point conditions...
$1,870.00 AUD Inc. GST
The Tramex IQCPK is a compact kit for conducting the Installation Quick Check test, which is the instant, non-destructive, quantitative moisture content testing of concrete floors and ambient dew-point conditions at the time of installation.
Even if pre-installation tests have been performed, checking the %MC and ambient dew-point conditions at the time of installation is crucial to ensure successful installation. The Tramex CMEX5 digital moisture meter allows for non-destructive quantitative testing of concrete moisture content using Gravimetric testing as a baseline. The CMEX5 has a built-in hygrometer providing ambient relative humidity, temperature and dew-point measurements. The Infrared Thermometer provides surface temperature readings for comparison with the dew-point conditions to avoid condensation-related issues at the time of installation and floor failures. The Tramex Meters App allows for data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts.

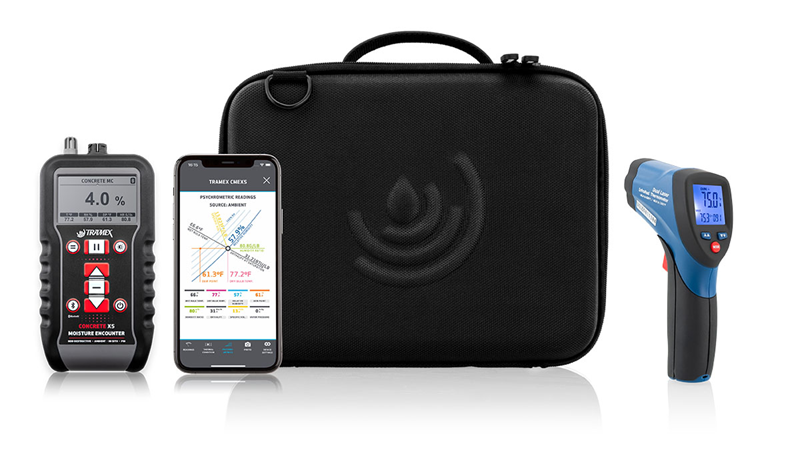

The Tramex Flooring Installation Quick Check Plus Kit includes the Concrete Moisture Encounter X5 - CMEX5, the Infrared Thermometer - IRT2, and comes in a Tramex Easy-travel case.
Specifications

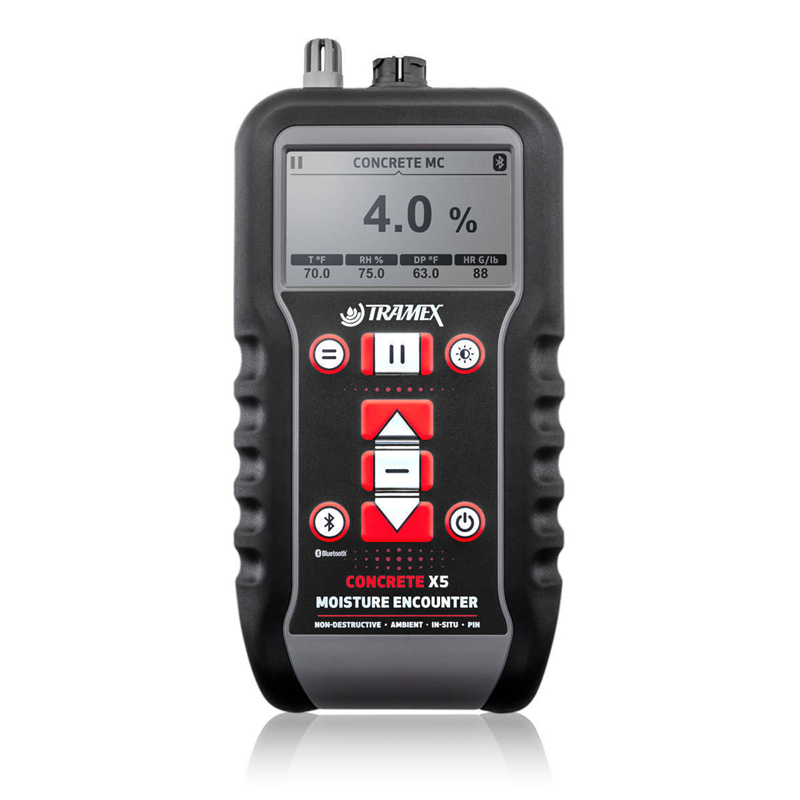

Concrete Moisture Encounter X5 - CMEX5 - Measuring Range:
- Depth of penetration in concrete: approx. 20mm (¾")
- Moisture content for Concrete: 0 → 6.9 %
- Comparative for Gypsum floor screed: 0 → 12
- CM Equiv Anhydrite/Concrete: 0 → 2.7 / 0 → 4.3
- Reference scale: 0 → 100
- Relative Humidity: 0 → 99%
- Relative Humidity (with optional Hygro-i2®probe): 0% → 99%RH +/- 2% @ 25°C / 77°F
- Moisture content for wood (with optional wood pin probes): 5 → 30 %

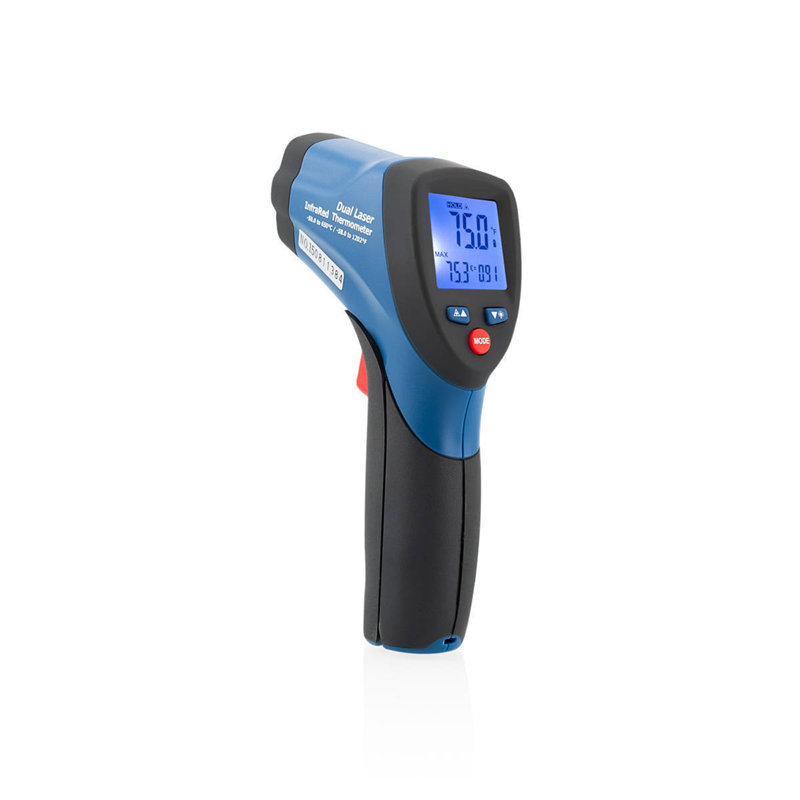

Infrared Thermometer IRT2:
- Temperature range: -50 to 650 ºC (-58ºF ~ 1202ºF)
- Distance to Spot ratio: D:S = 12:1
- Display resolution: 0.1 ºC(0.1ºF) < 1000 1ºC >1000
- Accuracy for targets: Assumes ambient operating temperature of 23 to 25 ºC (73 to 77ºF) -50 ~ 20ºC (-58ºF ~ 68ºF) / ±2.5ºC(4.5ºF) 20ºC ~300ºC (68ºF ~572ºF) ±1.0% ±1.0ºC (1.8ºF) 300ºC ~650ºC (572ºF ~ 1202ºF) ±1.5%
- Repeatability: -50~20ºC (-58~68ºF) : ±1.3ºC (2.3ºF) 20~650ºC (68~1202ºF): ±0.5% or ±0.5ºC (0.9ºF)
- Response time: 150ms
- Spectral response: 8~14um
- Emissivity: Digitally adjustable from 0.10 to 1.0
- Over range indication: LCD will show “----”
- Polarity: Automatic (no indication for positive polarity); Minus (-) sign for negative polarity
- Diode laser output: <1mW,Wavelength 630~670nm, Class 2 laser product
- Operating temp.: 0 to 50ºC(32 to 122ºF)
- Storage temp.: –10 to 60ºC (14 to 140ºF)
- Relative humidity: 10%~90%RH operating, <80%RH storage
- Power supply: 9V battery, NEDA 1604A or IEC 6LR61, or equivalent
- Safety: “ CE ” Comply with EMC
