IPROTX - I2C Electrostatic Discharge and Current-Limiting Protection Module

ORDER ME IN
Product code: IPROTX

Order Me In, once ordered this item will likely dispatch before the 04th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

I2C Electrostatic Discharge and Current-Limiting Protection Module
Regular price $367.00 AUD + GST
$403.70 AUD Inc. GST

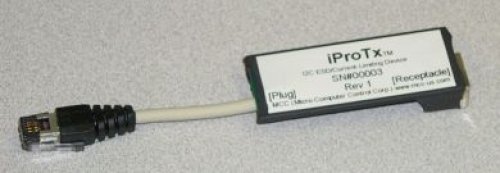

iProTxTM (pronounced “i-pro-tex”), is an ESD (Electrostatic Discharge) and Current-Limiting protection module for I2C Bus and SMBus circuit protection in testing and manufacturing environments.

It is estimated that up to a third of all electronic products are damaged by ESD. This is especially discouraging when you consider that a significant percentage of this damage can occur in test fixtures on a production line.

iProTx brings ESD and current-limiting protection to devices connected to an I2C or SMBus. Based on transient voltage suppression (TVS) technology created for hot-plug USB devices, and automatic resetting fuses for over-current protection, the iProTx gives I2C or SMBus devices protection in automatic insertion applications typically found in factory automation, testing, and plug-and-play environments.

PRODUCT HIGHLIGHTS

* Protects I2C and SMBus devices in Lab or Factory Environments.
* Inserts In-Line between I2C Systems.
*
Protection for SCL, SDA, Interrupt, Power, and Ground.
*
5 Volt Tolerant.
*
Transient Voltage Suppression and Auto-Resetting Fuses.
*
Compatible with bus speeds up to 400 kHz.
*
Plug-Compatible with MCC I2C Products and Connectors.

iProTx provides I2C and SMBus devices with up to 15 kV of ESD protection, and current-limiting protection of 400 mA for signals and 1 A for power. Supporting bus speeds up to 400 kHz, the iProTx generates only 40 pF of bus loading capacitance.

iProTxProtection Specifications:
* Signal ESD Protection: _15KV Human Body Model_2KV Machine Model. _IEC-1.2/50uS waveform is 10V @ 5A; -7V @ -7A. Peak Power is 60W.
* Signal DC Over-Current Protection:
_PTC protected @ 0.4A trip. Peak Power 60W.
* Power and Ground Protection: _100A 8.3mS surge. PTC protected with 1A trip.

TYPICAL APPLICATIONS
*
Product Development: Software/Hardware Testing, Design Verification and Troubleshooting.
* Manufacturing: Testing and Debugging.
* Field Service: Field diagnosis, Repair service and Verification.
