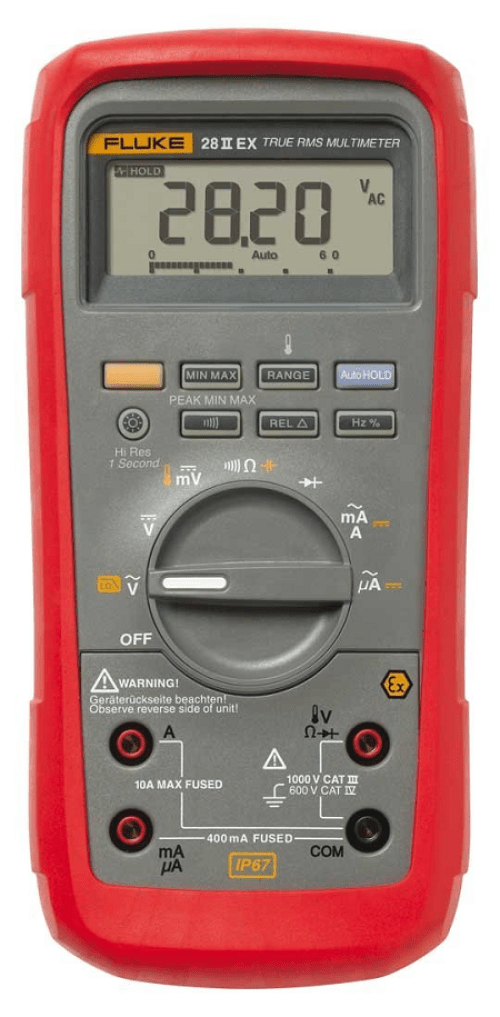

INTRINSICALLY SAFE TRMS INDUSTRIAL MULTIMETER IP67 FOR AUSTRALIA - IC-FLUKE-28IIEX
Order Me In, Once ordered this item will likely dispatch before the 13th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
$2,944.70 AUD Inc. GST
• 4-1/2 digit mode for precise measurements (20,000 counts).
• True-rms ac voltage and current for accurate measurement on nonlinear signals.
• Measures up to 1000V and 10A ac and dc (note that Ex zones require reduced measurements).
• Low pass filter ensures accurate voltage and frequency measurements on variable speed motor drives (VSDs).
• Frequency to 200 kHz and % duty cycle to help you diagnose VSDs and switching power supplies.
• Resistance, continuity and diode test.
• 10,000 μF capacitance range for components and motor caps.
• Conductance measurements for high resistance or leakage tests.
• Min/Max-Average and Peak capture to record transients and variations automatically.
• Relative mode to remove test lead interference on resistance measurements.
• Auto and manual ranging for maximum flexibility.
• Input Alert protects you by chirping and flashing “Lead when leads are plugged into the wrong inputs.
• A completely sealed, IP67 rated case
• Withstands drops up to 10 feet or 3 meters (with holster)
• Dust proof per IEC60529 IP6x
• Waterproof per IEC60529 IPx7
• Meets IEC Overvoltage Electrical Safety Standard No. 61010-1:2001
Specifications
DC voltage range: 0.1 mV to 1000 V
DC voltage accuracy: ±0.05 % + 1
AC voltage range: 0.1 mV to 1000 V
AC voltage accuracy: ±0.7 % +4
DC current range: 0.1 μA to 10 A
DC current accuracy: ±0.2 % + 4
AC current range: 0.1 μA to 10 A
AC current accuracy: ±1.0 % + 2
Resistance range: 0.1 Ω to 50 MΩ
Resistance accuracy: ±(0.2 % + 1)
Conductance range: 60.00 nS
Conductance accuracy: ± (1.0 % + 10)
Diode rest range: 2.0 V
Diode test accuracy: ± (2.0 % + 1)
Duty Cycle range: 0.0 % to 99.9 %
Duty Cycle accuracy: Within ±(0.2 % per kHz + 0.1 %) for rise times <1 µs
Display counts: 6000 counts/19,999 counts in high-resolution mode
Capacitance range: 10 nF to 9999 μF
Capacitance accuracy: ± (1.0 % + 2)
Frequency range: 0.5 Hz to 199.99 kHz
Frequency accuracy: ± (0.005 % + 1)
Temperature range: -200 °C to +1090 °C (-328 °F to +1994 °F)
Temperature accuracy: ± (1.0 % + 10) °C [± (1.0 % + 10) °F]
Peak Capture: Record transients up to 250 us
Min/Max/Avg Recording: Display signals up to approximately 100 ms
