Integrated Dendrometry Monitoring Station (For stems 40mm to 120mm in diameter) - IC-SNiP-DBS4-SL

ORDER ME IN
Product code: IC-SNiP-DBS4-SL
Integrated dendrometry monitoring station for stems 40mm to 120mm in diameter. Includes: 1 x DBS60, S-NODE with LoRaWAN communications, 6.5Ah rechargeable li-ion battery, 10W Solar Panel and SPLM7 mounting system for node and solar panel.

Read more

The SNiP-DBS4 is a 'Sensor Node Integrated Package' for LoRa, LoRaWAN, FSK or CAT-M1 communication of real-time plant diameter measurements for continuous plant monitoring.

Optional features include GNSS to record device location for spatially enabled data.

The base SNiP-DBS4 integrates 1x S-NODE and 1x DBS60 Band Dendrometer With Modified Fixing Plate to a sites unique network, communication and power requirements. The S-NODE can support an added 3x DBS60 Band Dendrometer devices.

The DBS60 Band Dendrometer is an SDI-12 Band Dendrometer designed to measure short- and long-term changes in stem circumference.

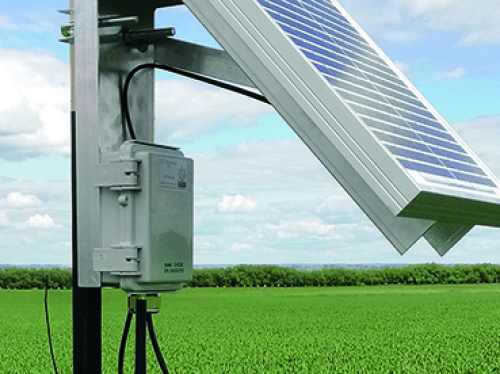

S-NODE: SDI-12 Node

The S-NODE (for Environmental Monitoring) has been designed to support the broad suite of SDI-12 based environmental sensors. The S-NODE can support sensors with higher power requirements; a solar panel can charge either the internal lithium-ion battery or both the node and sensor can be powered by an external 12V system (e.g. battery or mains source).

A decoder suitable for TTN will be provided based upon sensor configuration.

- LoRaWAN low-power long-range connectivity
- Supports the full range of SDI-12 commands, and sensors requiring constant excitation.
- Optional CAT-M1
- Solar rechargeable Lithium-ion, Single use LiSOCl2, or external 12V power options
- Optional Multi-constellation GNSS
- AS923, AU915 and US915 available, with other region plans available upon request.
- Standard IP65 enclosure, optional IP67

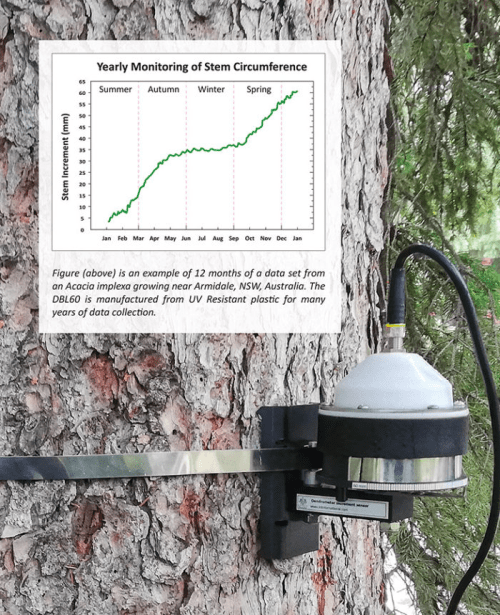

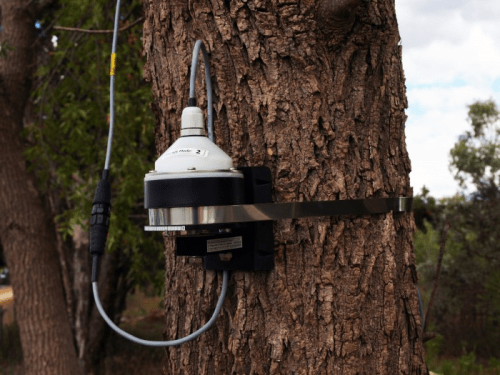

DBS60 SDI-12 Band Dendrometer

The DBS60 is an SDI-12 Band Dendrometer designed to measure short- and long-term changes in stem circumference. The DBS60 SDI-12 Band Dendrometer is similar to the DBL60, but has a cable for the connection to a SDI-12 Data Logger.

Specifications

- Increment sensors type: Rotary position
- Range: 64 mm of circumference
- Linearity: 2% of full scale
- Resolution: step-less
- Tape strength: 15 to 20 N in the whole range, stem diameter independent
- Tape temperature coefficient: 17.3 x 10-6 per C
- Operating range (Temperature): -30 to 60 C
- Operating range (Humidity): 0 to 100%
- Size: 100 x 70 x 100 mm
- Weight: ca 260 g
- Minimal stem diameter: 8 cm
- Increment range: 65mm
- Tightening strength: 15 to 20 N
